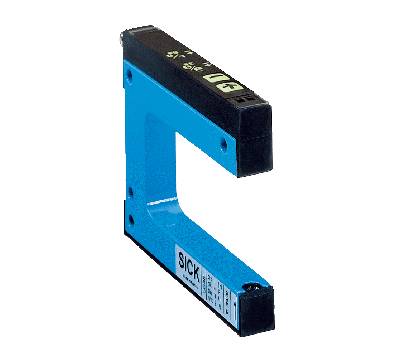

    Fork sensors SICK WF

    Type:WF15-95B410
    Part No.:6028445
    Features
    Functional principle Optical detection principle
    Dimensions (W x H x D) 10 mm x 45 mm x 110 mm
    Housing design (light emission) Fork shaped
    Fork width 15 mm
    Fork depth 95 mm
    Minimum detectable object (MDO) 0.2 mm
    Label detection
    Light source LED, infrared, Infrared light
    Wave length 850 nm
    Adjustment Plus/minus button (Sensitivity, light/dark switching, key lock)
    Teach-in mode
    Output function Light/darkswitching, selectable via button


    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 10 % 2)
    Current consumption 40 mA
    Switching frequency 10 kHz 3)
    Response time 100 µs
    Stability of response time ± 20 µs
    Jitter 40 µs
    Switching output PNP/NPN
    Switching output (voltage)

    PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V

    NPN: HIGH = approx. UV / LOW ≤ 2 V

    Switching mode Light/dark switching
    Output current Imax. 100 mA
    Initialization time 100 ms
    Connection type Male connector M8, 4-pin
    Protection class III 4)
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP65
    Weight Approx. 36 g ... 160 g 5)
    Housing material Metal, Aluminum
    • 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) With light/dark ratio 1:1.
    • 4) Reference voltage DC 50 V.
    • 5) Depending on fork width.


    Ambient data
    Ambient operating temperature –20 °C ... +60 °C 1)
    Ambient temperature, storage –30 °C ... +80 °C
    Ambient light immunity ≤ 10,000 lx
    Shock load According to EN 60068-2-27
    UL File No. NRKH.E191603
    • 1) Do not bend below 0 °C.


    Classifications
    ECl@ss 5.0 27270909
    ECl@ss 5.1.4 27270909
    ECl@ss 6.0 27270909
    ECl@ss 6.2 27270909
    ECl@ss 7.0 27270909
    ECl@ss 8.0 27270909
    ECl@ss 8.1 27270909
    ECl@ss 9.0 27270909
    ECl@ss 10.0 27270909
    ECl@ss 11.0 27270909
    ETIM 5.0 EC002720
    ETIM 6.0 EC002720
    ETIM 7.0 EC002720
    ETIM 8.0 EC002720
    UNSPSC 16.0901 39121528
