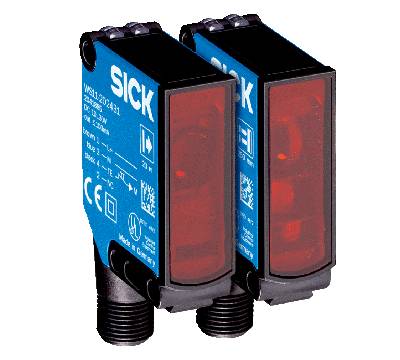

    Small photoelectric sensors SICK W11-2

    Type:WSE11-2N2430
    Part No.:1057573
    Features
    Sensor/ detection principle Through-beam photoelectric sensor
    Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
    Housing design (light emission) Rectangular
    Sensing range max. 0 m ... 20 m
    Sensing range 0 m ... 15 m
    Type of light Visible red light
    Light source LED 1)
    Light spot size (distance) Ø 220 mm (15 m)
    Angle of dispersion Approx. 1.5°
    Wave length 633 nm
    Adjustment None
    • 1) Average service life: 100,000 h at TU = +25 °C.


    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple ≤ 5 Vpp 2)
    Power consumption, sender ≤ 25 mA 3)
    Power consumption, receiver ≤ 20 mA 3)
    Switching output NPN
    Output function Complementary
    Switching mode Light/dark switching
    Signal voltage NPN HIGH/LOW Approx. VS / < 2.5 V
    Output current Imax. 100 mA
    Response time ≤ 2.5 ms 4)
    Switching frequency 200 Hz 5)
    Connection type Male connector M12, 4-pin
    Circuit protection

    A 6)

    C 7)

    D 8)

    Protection class II
    Weight 120 g
    Housing material Plastic, ABS
    Optics material Plastic, PMMA
    Enclosure rating

    IP66

    IP67

    IP69K

    Test input sender off TE to 0 V
    Ambient operating temperature –30 °C ... +60 °C
    Ambient storage temperature –40 °C ... +75 °C
    UL File No. NRKH.E181493 & NRKH7.E181493
    Part number of individual components 2063410 WS11-2D2430 2063414 WE11-2N2430
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) Signal transit time with resistive load.
    • 5) With light/dark ratio 1:1.
    • 6) A = VS connections reverse-polarity protected.
    • 7) C = interference suppression.
    • 8) D = outputs overcurrent and short-circuit protected.


    Safety-related parameters
    MTTFD 1,080 years
    DCavg 0%


    Classifications
    ECl@ss 5.0 27270901
    ECl@ss 5.1.4 27270901
    ECl@ss 6.0 27270901
    ECl@ss 6.2 27270901
    ECl@ss 7.0 27270901
    ECl@ss 8.0 27270901
    ECl@ss 8.1 27270901
    ECl@ss 9.0 27270901
    ECl@ss 10.0 27270901
    ECl@ss 11.0 27270901
    ETIM 5.0 EC002716
    ETIM 6.0 EC002716
    ETIM 7.0 EC002716
    UNSPSC 16.0901 39121528
