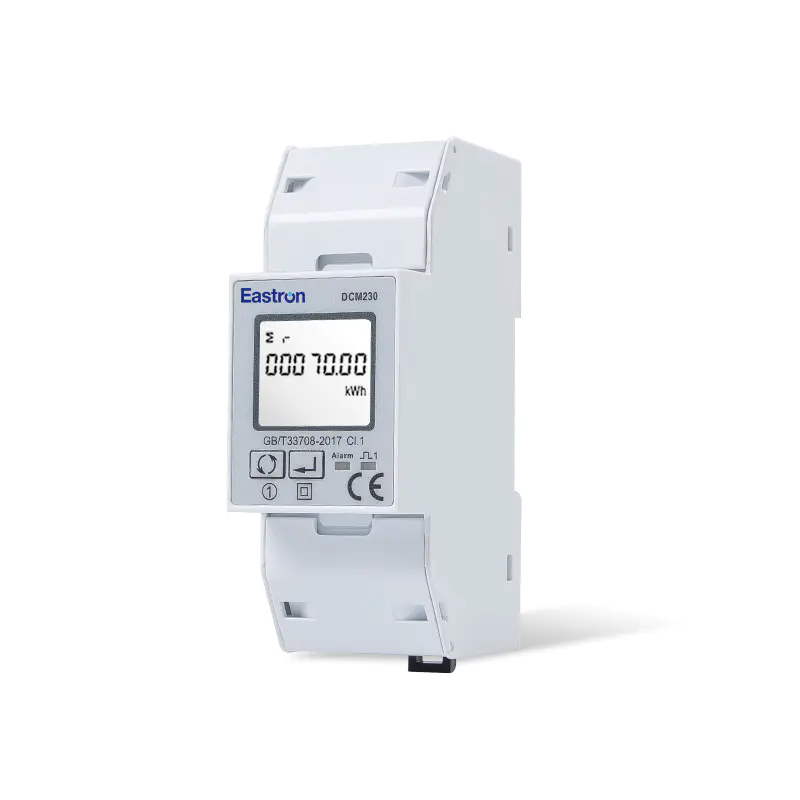

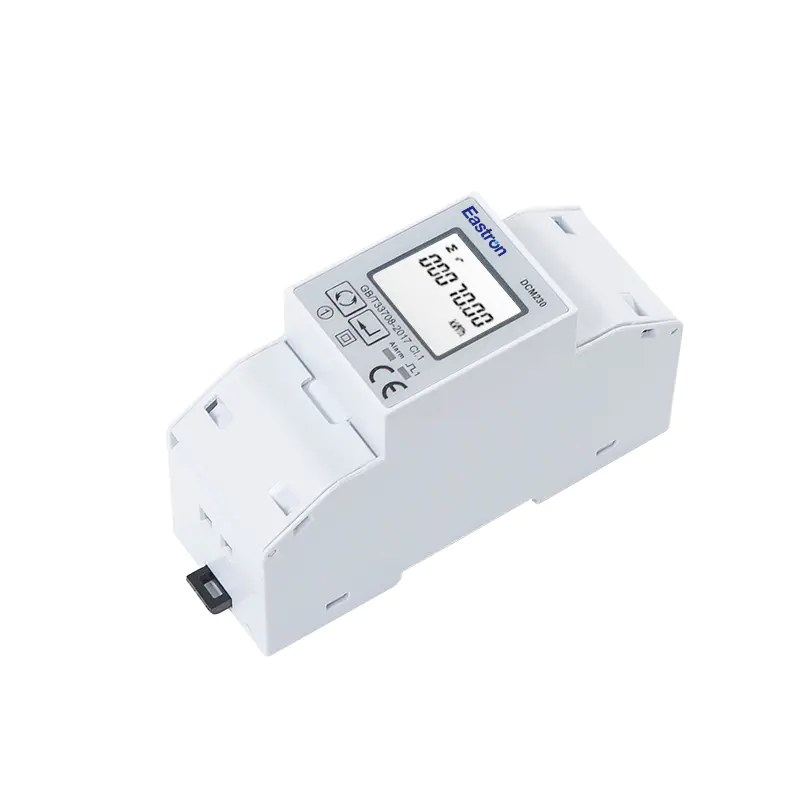

Single Load Multi-function Energy Meter Eastron DCM230
- Two Module Mini Size
- LCD Display with Backlit
- Voltage Input 5-1000V DC
- Current Input 75mV/60mV/ 50mV/45mV Available
- Precision monitoring Solution for DC EV Charging Piles
- Bi-directional Measurement
- Pulse Output
- RS485 Modbus RTU
- Class 1.0 / 0.5 Accuracy
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on DC energy system (1P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
0.5% of range maximum |
|
|
Current |
0.2% of range maximum |
|
|
Voltage |
0.2% of range maximum |
|
|
Input & Output |
||
|
Input-Voltage |
Range |
5-1000V DC |
|
5-600V DC |
||
|
5-300V DC |
||
|
Power consumption |
≤0.5VA |
|
|
Input-Current |
Shunt |
75mV in default, 45/60mV optional |
|
Power consumption |
≤0.1VA |
|
|
Output |
DCM230 |
Pulse Output + RS485 Modbus |
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~19200bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
