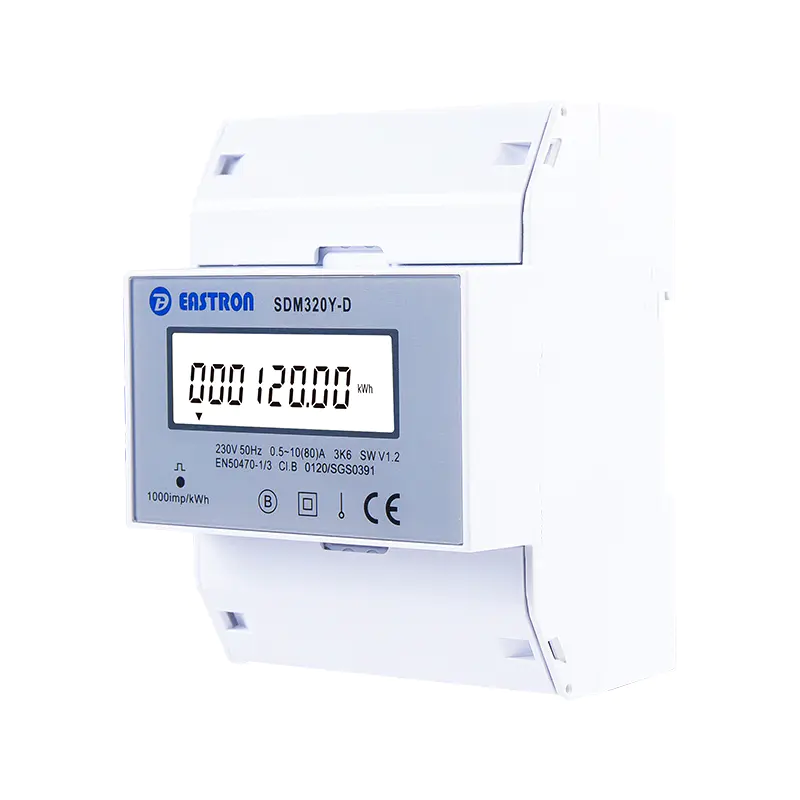

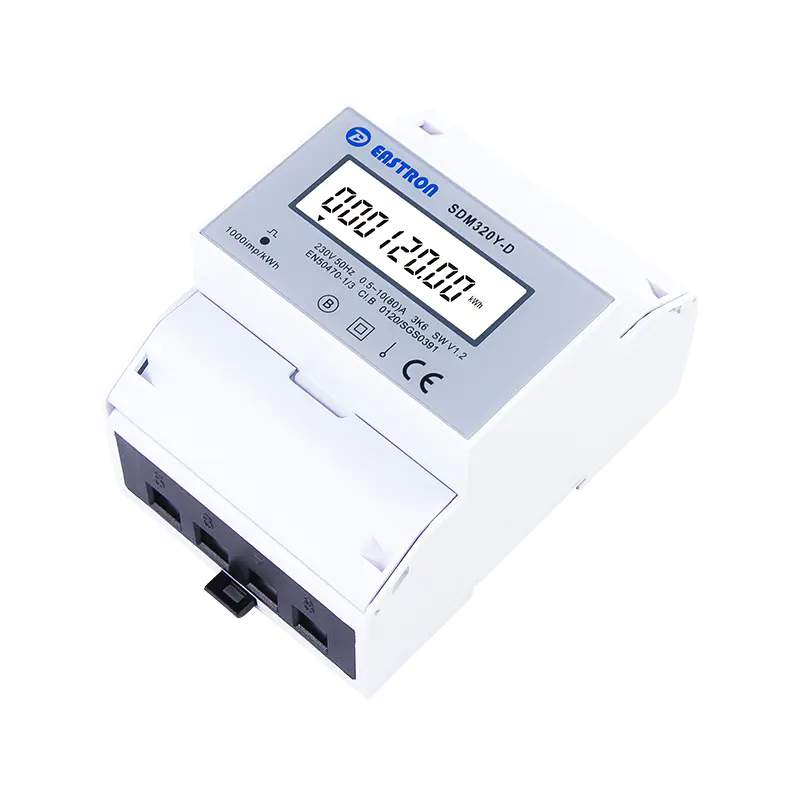

Single Phase Electronic Kwh Meter With Pulse Output Eastron SDM320Y-D
- Max. 100A Direct Load
- 230V AC Voltage Input
- 4 Modules 72mm Width
- 1P2W
|
Electrical characteristics |
||
|
Type of measurement |
RMS including on single phase AC system |
|
|
Accuracy |
Active Energy |
IEC 62053-21 Class 1.0; EN50470-1/3 Class B |
|
Input & Output |
|||
|
Input |
Current |
Rated Current |
10A |
|
Max Current |
80A |
||
|
Min Current |
0.5A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Volatge (Un) |
230V |
|
|
Operational Volatge |
80% ~ 120% of Un |
||
|
Output |
SDM320Y-D |
Pulse Output |
|
|
SDM320Y-RF |
Pulse Output + RS485 Modbus |
||
