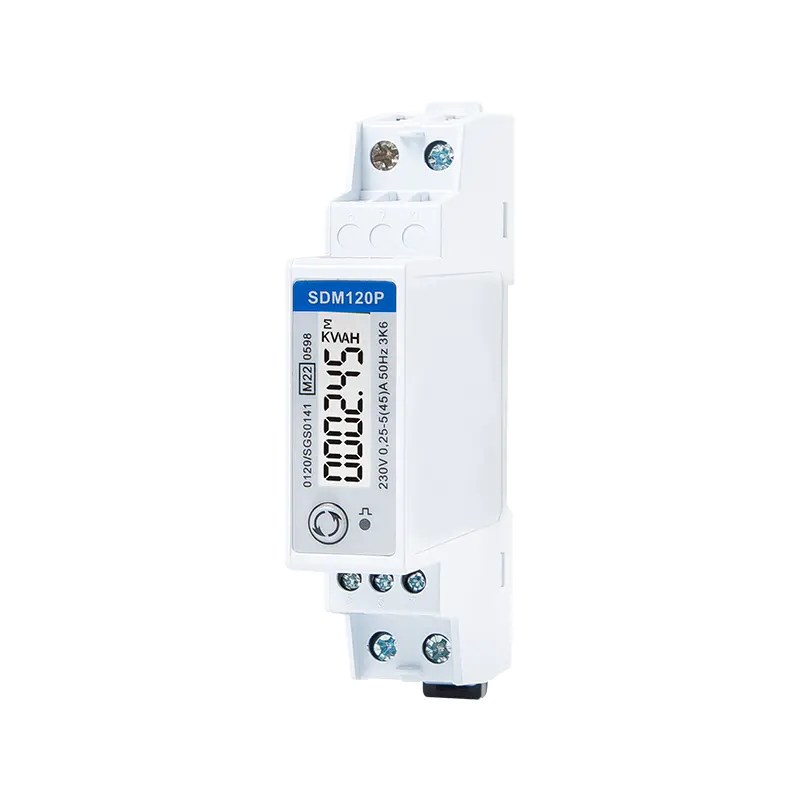

Single Phase Multi-function En Ergy Meter Eastron SDM120-P
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- LCD with backlit
- 2 Pulse Output
- Bi-directional Measurement
- Max. 45A Direct Load
- 1 Module 18mm Width
- MID approved
- 1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Voltage |
±0.5%
|
|
Current |
±0.5%
|
|
|
Frequency |
±0.2%
|
|
|
Power Factor |
±1%
|
|
|
Active Power |
±1%
|
|
|
Reactive Power |
±1%
|
|
|
Apparent Power |
±1%
|
|
|
Active Energy |
Class 0.5/1 IEC62053-21 Class C/B EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
5A |
|
Max Current(Imax.) |
45A |
||
|
Min Current(Imin.) |
0.15A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operational Voltage |
85~276V AC |
||
|
Output |
SDM120P |
2 Pulse Output for imp/exp. energy |
|
|
SDM120M |
2 Pulse Output + RS485 Modbus |
||
|
SDM120MB |
2 Pulse Output + M-bus EN13757 |
||
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
|
M-Bus EN13757-3 Communications |
|
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
