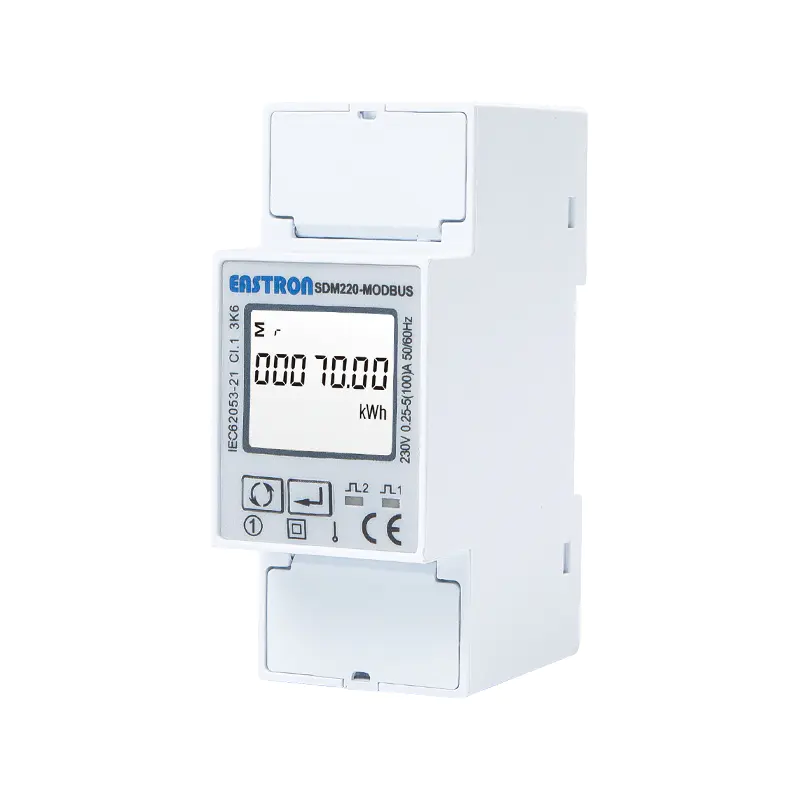

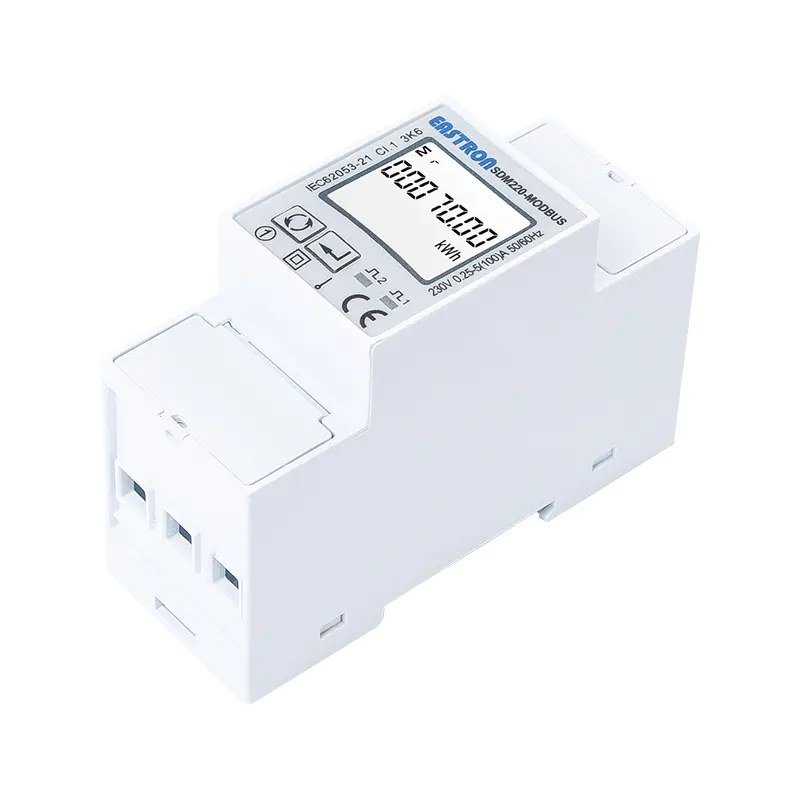

Single Phase Multi-function Energy Meter Eastron SDM220-Modbus
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- For 7kW AC EV Charging Piles
- 2 Pulse Outputs
- RS485 Modbus RTU
- Bi-directional Measurement
- Max. 100A Direct Load
- 2 Module 36mm Width
- 1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
|
|
Reactive Energy |
IEC 62053-23 Class 2, IEC 61557-12 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current |
Rated Current |
5A |
|
Max Current |
100A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operational Voltage |
80%~120% of Un |
||
|
SDM220-Modbus/ SDM220-MT |
2 Pulse Output + RS485 Modbus |
||
|
SDM220-Mbus |
2 Pulse Output + Mbus EN13757-3 |
||
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
1200bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
M-Bus EN13757-3 Communications |
|
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
