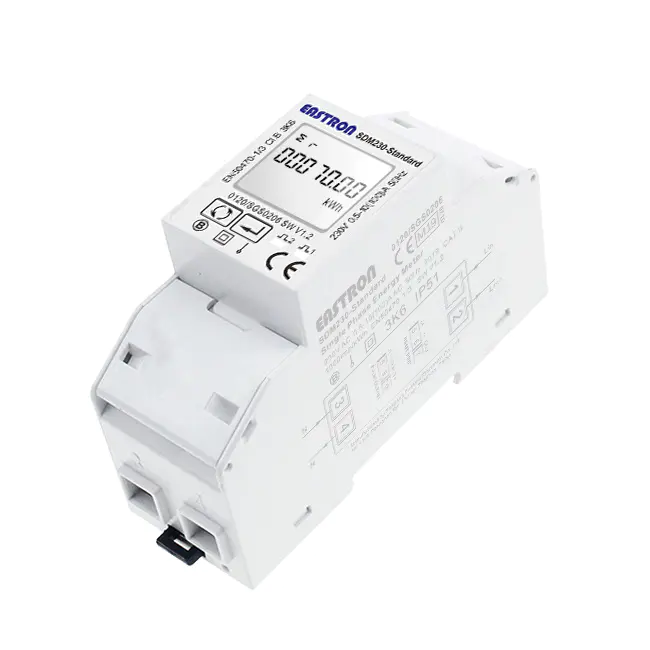

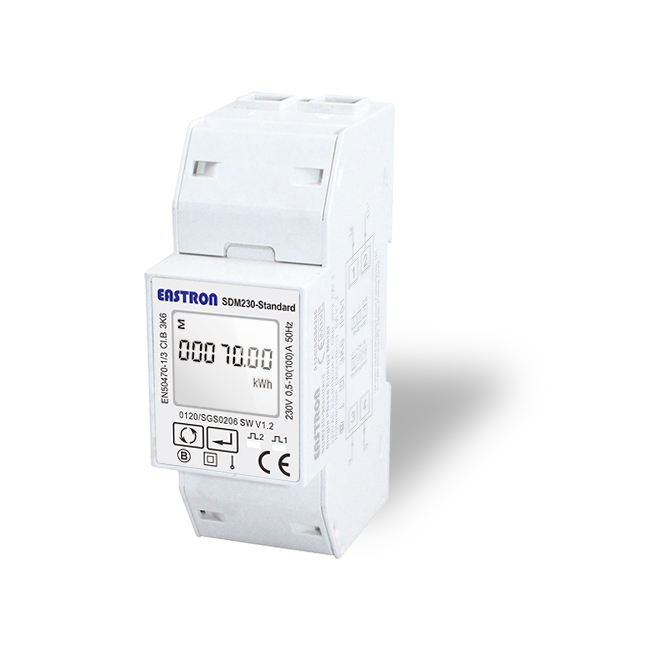

Single Phase Multi-function Energy Meter Eastron SDM230-Std
- kWh infromation measured.
- LCD with backlit
- 2 Pulse Output + Modbus
- Bi-directional Measurement
- Max. 100A Direct Load
- 2 Module 36mm Width
- MID approved
- 1P2W
|
Input & Output |
||
|
Input-Current |
Rated Current |
10A |
|
Max Current |
100A |
|
|
Min Current |
0.5A |
|
|
Starting Current |
20mA |
|
|
Output |
SDM230A/D/DR/BI |
Pulse Output for active energy |
|
SDM230-Std/ Modbus/2T |
2 Pulse Output + RS485 Modbus |
|
|
SDM230-Mbus |
2 Pulse Output + Mbus |
|
|
SDM230-LoRa |
2 Pulse Output + LoRaMESH/LoRaWAN |
|
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1-247 |
|
Transmission Mode |
Half Duplex |
|
Data Type |
Floating Point |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps〜19200bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
