Energy Meter & Current Transformer

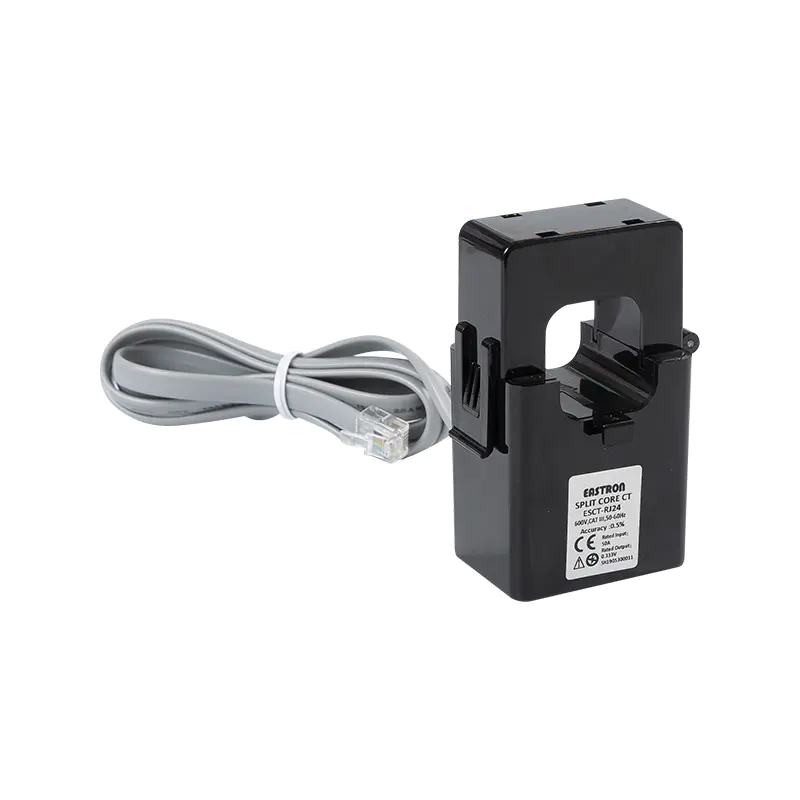

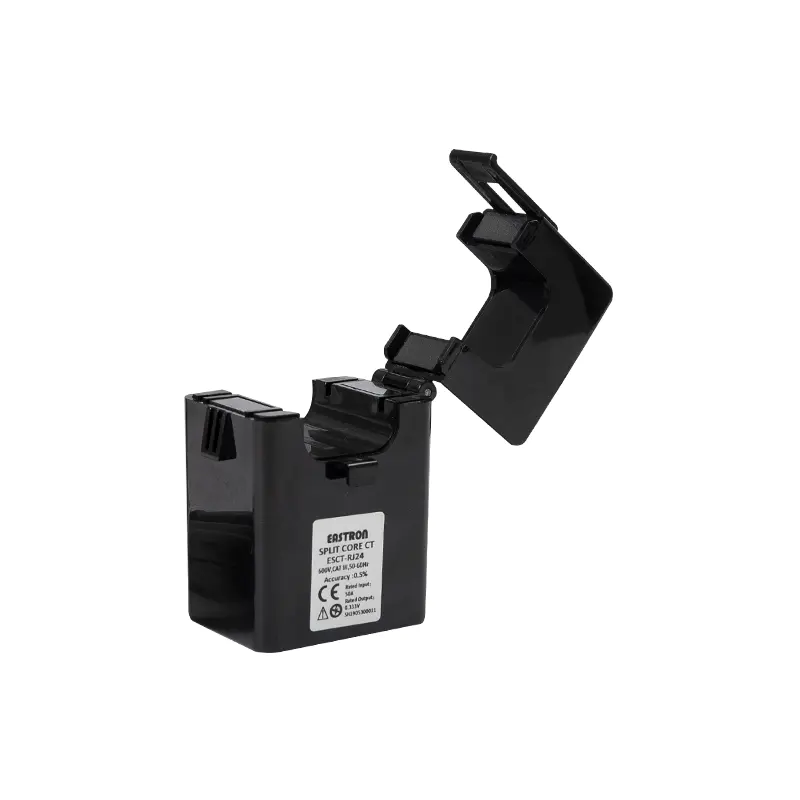

Single Phase Rj12-1 Mv/ma Output Split Core Current Sensor For Easy Click System Eastron ESCT-RJ-1 Series
- RJ12 plug in technology
- Easy Installation & Error Free
- Wide range of Primary Current
- Split Core Type, without disconnecting wires
| Model | Primary Current |
Secondary Output |
Accuracy | |
| ESCT-RJ16 | 5A | mV or mA | 0.5 or 1 | |
| 10A | mV or mA | 0.5 or 1 | ||
| 50A | mV or mA | 0.5 or 1 | ||
| 100A | mV or mA | 0.5 or 1 | ||
| 150A | mV or mA | 0.5 or 1 | ||
| ESCT-RJ24 | 10A | mV or mA | 0.5 or 1 | |
| 50A | mV or mA | 0.5 or 1 | ||
| 100A | mV or mA | 0.5 or 1 | ||
| 250A | mV or mA | 0.5 or 1 | ||
| 100A | mV or mA | 0.5 or 1 | ||
| ESCT-RJ36 | 20A | mV or mA | 0.5 or 1 | |
| 100A | mV or mA | 0.5 or 1 | ||
| 250A | mV or mA | 0.5 or 1 | ||
| 400A | mV or mA | 0.5 or 1 | ||
| 600A | mV or mA | 0.5 or 1 | ||
| ESCT-RJ50 | 200A | mV or mA | 0.5 or 1 | |
| 250A | mV or mA | 0.5 or 1 | ||
| 300A | mV or mA | 0.5 or 1 | ||
| 400A | mV or mA | 0.5 or 1 | ||
| 500A | mV or mA | 0.5 or 1 | ||
| 600A | mV or mA | 0.5 or 1 | ||
| 700A | mV or mA | 0.5 or 1 | ||
| 800A | mV or mA | 0.5 or 1 | ||
| 1000A | mV or mA | 0.5 or 1 | ||
| 1200A | mV or mA | 0.5 or 1 | ||
| Model | Primary Current |
Accuracy | |
| ESCT-RJ325 | 60A | Class 0.5 or 1 | |
| 100A | Class 0.5 or 1 | ||
| 120A | Class 0.5 or 1 | ||
| 125A | Class 0.5 or 1 | ||
| 150A | Class 0.5 or 1 | ||
| 160A | Class 0.5 or 1 | ||
| 200A | Class 0.5 or 1 | ||
| ESCT-RJ335 | 60A | Class 0.5 or 1 | |
| 125A | Class 0.5 or 1 | ||
| 150A | Class 0.5 or 1 | ||
| 200A | Class 0.5 or 1 | ||
| 250A | Class 0.5 or 1 | ||
| ESCT-RJ345 | 250A | Class 0.5 or 1 | |
| 300A | Class 0.5 or 1 | ||
| 400A | Class 0.5 or 1 | ||
| 500A | Class 0.5 or 1 | ||
| 600A | Class 0.5 or 1 | ||
| 630A | Class 0.5 or 1 | ||
| ESCT-RJ370 | 600A | Class 0.5 or 1 | |
| 630A | Class 0.5 or 1 | ||
| 800A | Class 0.5 or 1 | ||
| 1000A | Class 0.5 or 1 | ||
| 1200A | Class 0.5 or 1 | ||
