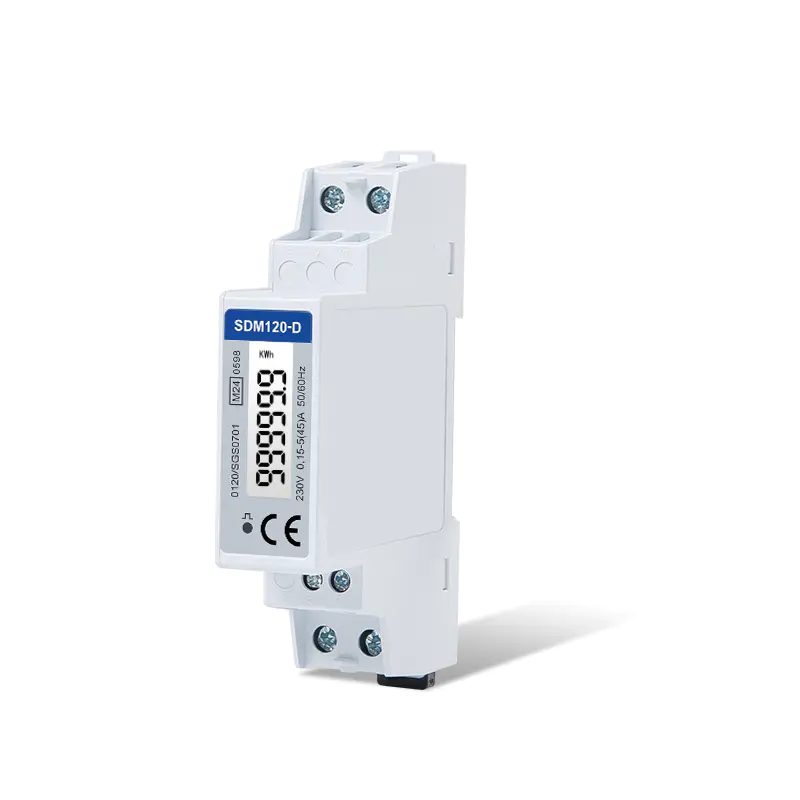

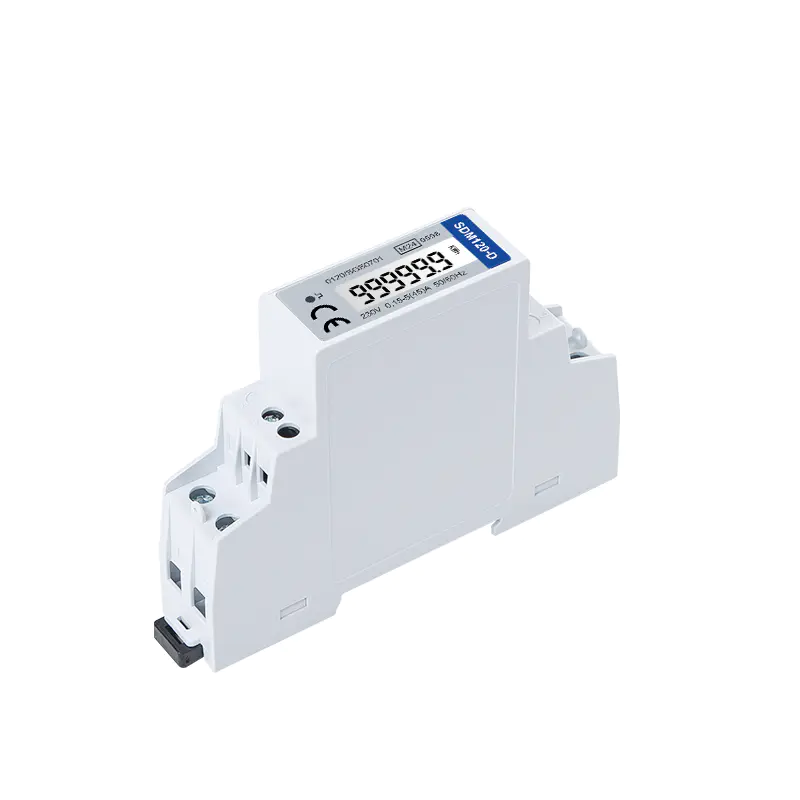

Single Phase Two Wire Kwh Meter Eastron SDM120-D
- Active Energy Measured
- LCD display
- Pulse Output
- Max. 45A Direct Load
- 1 Module 18mm Width
- 1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Energy |
IEC62053-21 Class 1/0.5 |
|
Input & Output |
|||
|
Input |
Current |
Rated Current (Ib) |
5A |
|
Max Current (Imax.) |
45A |
||
|
Min Current (Imin.) |
0.15A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operation Voltage |
80% ~120% of Un |
||
|
Output |
SDM120-A/D/DB |
Pulse Output for active energy |
|
