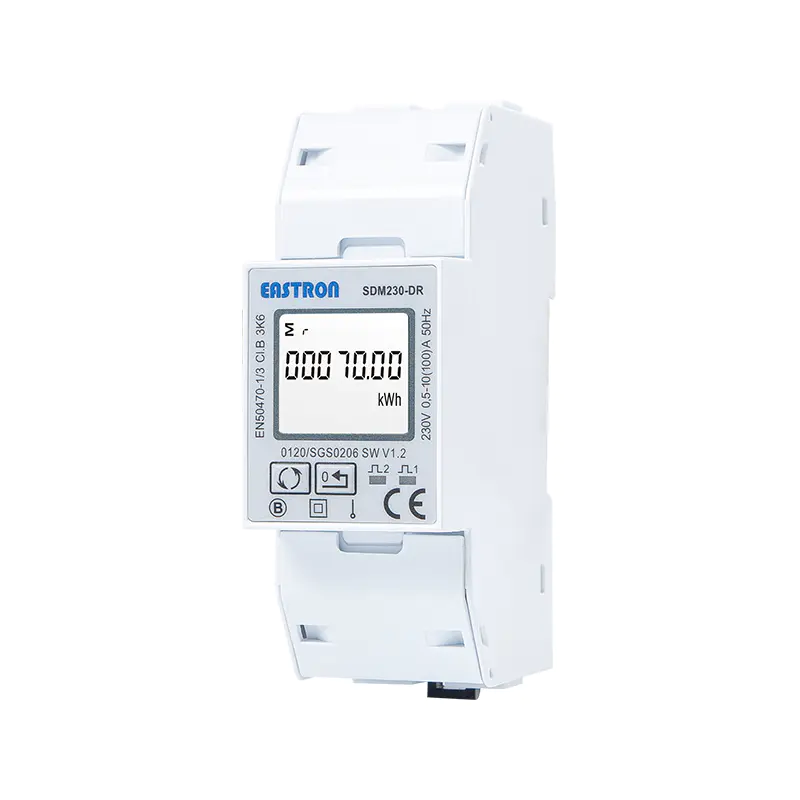

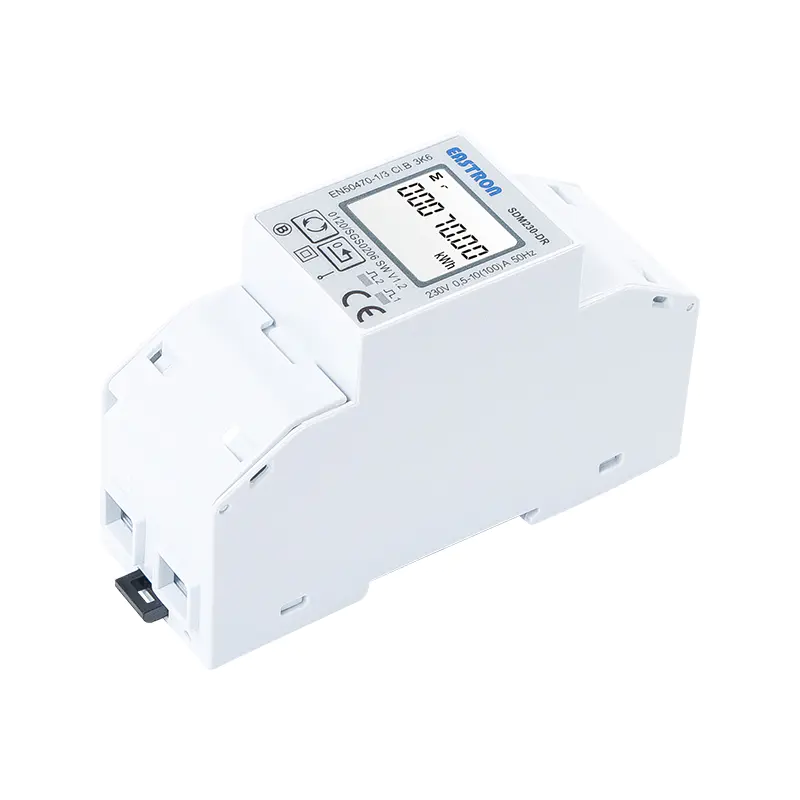

Single Phase Two Wire Kwh Meter Eastron SDM230DR
- Active Energy + Power measured
- LCD display with backlit
- Pulse Output
- Max. 100A Direct Load
- Partial Energy resettable
- 2 Module 36mm Width
- 1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
|
|
Input & Output |
||||
|
Input |
Current |
Rated Current (Ib) |
10A |
|
|
Max Current (Imax.) |
100A |
|||
|
Min Current (Imin.) |
0.5A |
|||
|
Starting Current |
40mA |
|||
|
Voltage |
Rated Voltage (Un) |
230V |
||
|
Operation Voltage |
80% ~120% of Un |
|||
|
Output |
SDM230DR/ SDM230BI |
Pulse Output for active energy |
||
