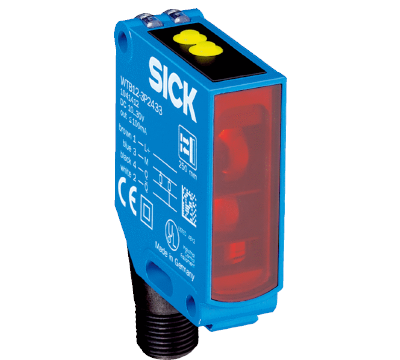

    Small Photoelectric Sensors SICK W12-3

    Type:WTB12-3P2433
    Part No.:1041412
    Small Photoelectric Sensors SICK W12-3 WTB12-3P2433

    Features
    Device type Photoelectric sensors
    Sensor/ detection principle Photoelectric proximity sensor, Background suppression
    Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
    Housing design (light emission) Rectangular
    Sensing range max. 20 mm ... 350 mm 1)
    Sensing range 20 mm ... 350 mm
    Type of light Visible red light
    Light source LED 2)
    Light spot size (distance) Ø 6 mm (200 mm)
    Wave length 640 nm
    Adjustment Double teach-in button
    • 1) Object with 90 % reflectance (referred to standard white, DIN 5033).
    • 2) Average service life: 100,000 h at TU = +25 °C.

    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption 45 mA 3)
    Switching output PNP
    Output function Complementary
    Switching mode Light/dark switching
    Signal voltage PNP HIGH/LOW > Uv - 2,5 V / ca. 0 V
    Output current Imax. ≤ 100 mA
    Response time ≤ 330 µs 4)
    Switching frequency 1,500 Hz 5)
    Connection type Male connector M12, 4-pin
    Circuit protection

    A 6)

    C 7)

    D 8)

    Protection class III
    Weight 120 g
    Housing material Metal
    Optics material Plastic, PMMA
    Enclosure rating

    IP66

    IP67

    Items supplied 2 x clamps BEF-KH-W12, incl. screws
    Ambient operating temperature –40 °C ... +60 °C
    Ambient temperature, storage –40 °C ... +75 °C
    UL File No. NRKH.E181493 & NRKH7.E181493
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) Signal transit time with resistive load.
    • 5) With light/dark ratio 1:1.
    • 6) A = VS connections reverse-polarity protected.
    • 7) C = interference suppression.
    • 8) D = outputs overcurrent and short-circuit protected.
