    Small Photoelectric Sensors SICK W9

    Type:WSE9M4-3P1130
    Part No.:1051911

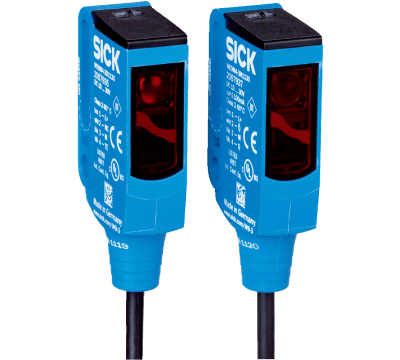

    Small Photoelectric Sensors SICK W9 WSE9M4-3P1130

    Features
    Device type Photoelectric sensors
    Sensor/ detection principle Through-beam photoelectric sensor
    Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm
    Housing design (light emission) Rectangular
    Mounting hole M4
    Sensing range max. 0 m ... 10 m
    Sensing range 0 m ... 7 m
    Type of light Visible red light
    Light source PinPoint LED 1)
    Light spot size (distance) Ø 25 mm (1 m)
    Wave length 650 nm
    Adjustment None
    • 1) Average service life: 100,000 h at TU = +25 °C.

    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption 30 mA 3)
    Switching output PNP 4)
    Output function Complementary
    Switching mode Light/dark switching 4)
    Output current Imax. ≤ 100 mA 5)
    Response time < 0.5 ms 6)
    Switching frequency 1,000 Hz 7)
    Connection type Cable, 4-wire, 2 m 8)
    Cable material PVC
    Conductor cross-section 0.14 mm²
    Circuit protection

    A 9)

    B 10)

    C 11)

    Protection class III
    Weight 80 g
    Housing material Plastic, VISTAL®
    Optics material Plastic, PMMA
    Enclosure rating

    IP66

    IP67

    IP69K

    Test input sender off Sender off
    Ambient operating temperature –40 °C ... +60 °C
    Ambient temperature, storage –40 °C ... +75 °C
    UL File No. NRKH.E181493
    Part number of individual components 2057935 WS9M4-3D1130 2057936 WE9M4-3P1130
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) Q = light switching.
    • 5) At and above Tu 50 °C, a max. load current of Imax. = 50 mA is permitted.
    • 6) Signal transit time with resistive load.
    • 7) With light/dark ratio 1:1.
    • 8) Do not bend below 0 °C.
    • 9) A = VS connections reverse-polarity protected.
    • 10) B = inputs and output reverse-polarity protected.
    • 11) C = interference suppression.

    Classifications
    ECl@ss 5.027270901
    ECl@ss 5.1.427270901
    ECl@ss 6.027270901
    ECl@ss 6.227270901
    ECl@ss 7.027270901
    ECl@ss 8.027270901
    ECl@ss 8.127270901
    ECl@ss 9.027270901
    ECl@ss 10.027270901
    ECl@ss 11.027270901
    ETIM 5.0EC002716
    ETIM 6.0EC002716
    ETIM 7.0EC002716
    ETIM 8.0EC002716
    UNSPSC 16.090139121528
