Sensor

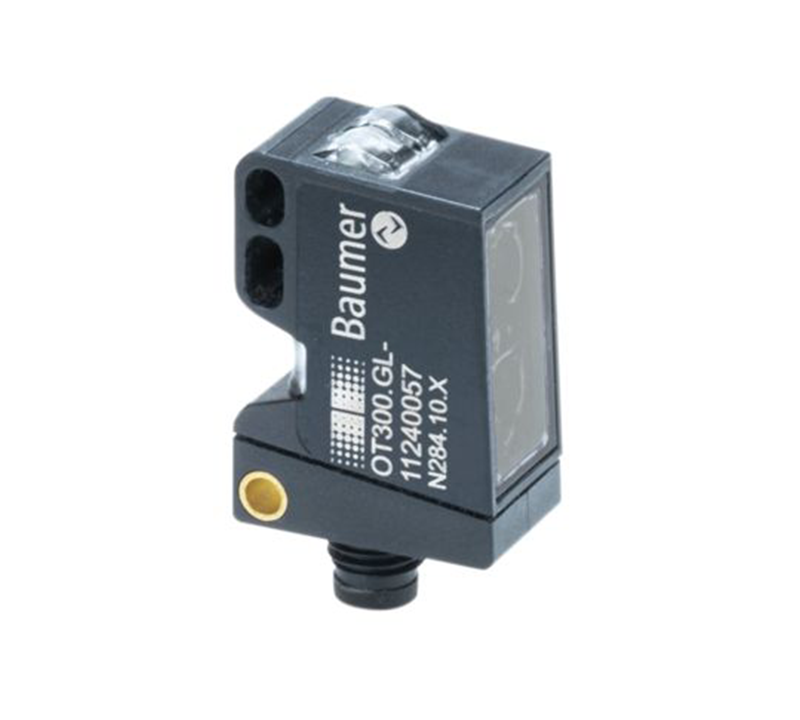

Smart Reflect Light barriers Baumer OT300.SL-NDNVT.72N
| General Data |
| Type |
Light barrier |
| Version |
Time of Flight |
| Light source |
Pulsed red laser diode |
| Sensing distance Tw |
400 mm ... 1800 mm |
| Scanning range Sa |
85% ... 80% Sde |
| Power on indication |
LED green |
| Output indicator |
LED yellow |
| Sensing distance adjustment |
qTeach |
| Laser class |
1 |
| Distance to focus |
700 mm |
| Wave length |
680 nm |
| Suppression of reciprocal influence |
Yes |
| Beam type |
Point |
| Alignment optical axis |
< 2° |
| Electrical Data |
| Response time / release time |
< 8 ms |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption max. (no load) |
60 mA |
| Voltage drop Vd |
< 2 VDC |
| Output function |
Dark operate, complementary |
| Output circuit |
NPN |
| Output current |
< 50 mA, sum of all outputs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Width / diameter |
12.9 mm |
| Height / length |
32.3 mm |
| Depth |
23 mm |
| Type |
Rectangular |
| Housing material |
Plastic (ASA, PMMA) |
| Front (optics) |
PMMA |
| Connection types |
Connector M8 4 pin |
| Ambient Conditions |
| Protection class |
IP 67 |
| Operating temperature |
-20 ... +50 °C |
| Storage temperature |
-40 ... +70 °C |
| Vibration (sinusoidal) |
IEC 60068-2-6:2008
10 g at f = 10 - 2000 Hz, duration 150 min per axis |
| Shock (semi-sinusoidal) |
IEC 60068-2-27:2009
50 g / 11 ms, 10 impulses per axis and direction |
