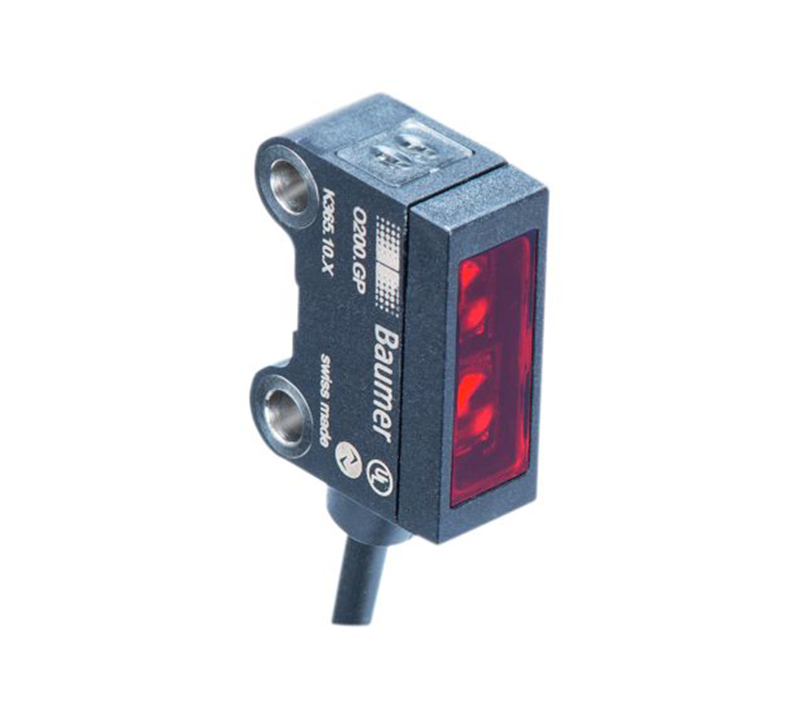

| General data |
| Type |
Light barrier |
| Version |
Standard object detection |
| Light source |
Pulsed PinPoint LED |
| Background position Sde |
25 ... 180 mm |
| Scanning range Sa |
90% ... 85% Sde |
| Smallest object recognizable typ. |
2.5 mm |
| Alignment / soiled lens indicator |
Flashing output indicator |
| Power on indication |
LED green |
| Output indicator |
LED yellow |
| Sensing distance adjustment |
Teach-in and IO-Link |
| Wave length |
644 nm |
| Suppression of reciprocal influence |
Yes |
| Alignment optical axis |
< 1.5° |
| Electrical data |
| Response time / release time |
< 0.25 ms (High Speed Mode) |
| Voltage supply range +Vs |
10 ... 30 VDC |
| Current consumption max. (no load) |
40 mA (@ 10 VDC) |
| Current consumption typ. |
16 mA (@ 24 VDC) |
| Voltage drop Vd |
< 2 VDC |
| Output function |
Light / dark operate |
| Output circuit |
Push-pull |
| Output current |
< 50 mA |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical data |
| Width / diameter |
8 mm |
| Height / length |
25.1 mm |
| Depth |
15.8 mm |
| Type |
Rectangular |
| Mechanical mounting |
Sleeve smooth (stainless steel) |
| Housing material |
Plastic (ASA, PMMA) |
| Front (optics) |
PMMA |
| Connection types |
Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics |
PVC / PVC 4 x 0,08 mm² |
| Ambient conditions |
| Operating temperature |
-25 ... +50 °C |
| Protection class |
IP 67 |
| Communications interface |
| Baud rate |
230,4 kBaud (COM 3) |
| Adjustable parameters |
Switching point, Time filters, LED status indicators, Output logic, Counter, Operation mode, Deactivate the sensor element, Find Me function, Teach-in mode |
| IO-Link port type |
Class A |
| Process data length |
32 Bit |
| Process data structure |
Bit 0 = SSC1 (presence), Bit 1 = SSC2 (distance), Bit 2 = quality, Bit 3 = alarm, Bit 5 = SSC4 (counter), Bit 16-31 = 16 Bit measurement |
| Interface |
IO-Link V1.1 |
| Additional data |
Excess gain, Operating cycles, Device temperature |
| Cycle time |
≥ 0,6 ms |
