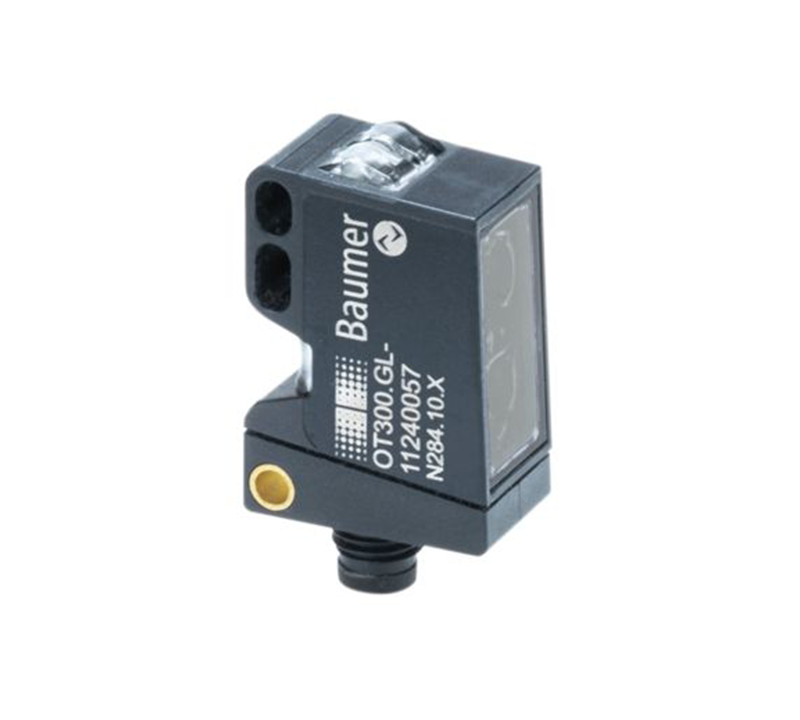

Sensor
| General Data | |
|---|---|
| Type | Light barrier |
| Version | Time of Flight |
| Light source | Pulsed red laser diode |
| Sensing distance Tw | 400 mm ... 1800 mm |
| Scanning range Sa | 85% ... 80% Sde |
| Repeat accuracy | ≤ 1400 ... 5500 μm |
| Temperature drift | ± 15 mm |
| Linearity error | ± 10 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | Teach-in and IO-Link |
| Laser class | 1 |
| Distance to focus | 700 mm |
| Wave length | 680 nm |
| Suppression of reciprocal influence | Yes |
| Beam type | Point |
| Alignment optical axis | < 2° |
| Electrical Data | |
| Response time / release time | < 4 ms (High Speed Mode) < 8 ms (Standard Mode) < 50 ms (Long Range Mode) |
| Voltage supply range +Vs | 12 ... 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Voltage drop Vd | < 2 VDC |
| Output function | Dark operate, switchable |
| Output circuit | Push-pull / IO-Link |
| Output current | < 50 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Communication Interface | |
| Interface | IO-Link V1.1.3 |
| Profile | DMSS |
| IO-Link port type | Class A |
| Baud rate | 230,4 kBaud (COM 3) |
| Cycle time | ≥ 2 ms |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-31 = 16 Bit measurement |
| Adjustable parameters | Switching point Switching hysteresis Operation mode Time filters LED status indicators Output logic Output circuit Counter Deactivate the sensor element Find Me function Teach-in mode |
