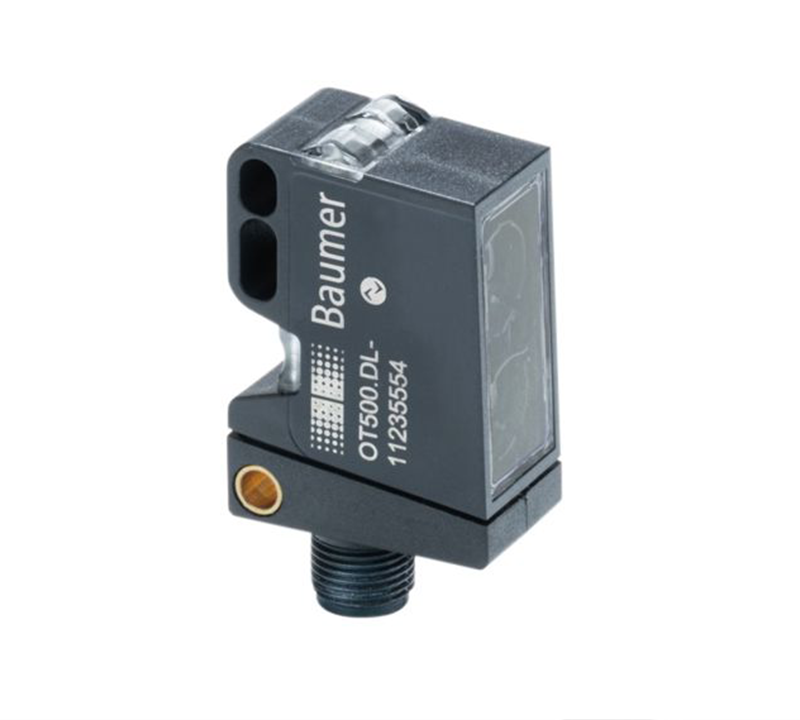

Sensor
| General Data | |
|---|---|
| Type | Light barrier |
| Version | Time of Flight |
| Light source | Pulsed red laser diode |
| Background position Sde | 500 ... 2500 mm |
| Scanning range Sa | 85% ... 80% Sde |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Sensing distance adjustment | qTeach / external |
| Laser class | 1 |
| Distance to focus | 1500 mm |
| Wave length | 680 nm |
| Suppression of reciprocal influence | Yes |
| Beam type | Point |
| Alignment optical axis | < 1° |
| Electrical Data | |
| Response time / release time | < 8 ms |
| Voltage supply range +Vs | 12 ... 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Voltage drop Vd | < 2 VDC |
| Output function | Dark operate, complementary |
| Output circuit | NPN |
| Output current | < 50 mA, sum of all outputs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 5 pin |
| Ambient Conditions | |
| Protection class | IP 67 |
| Operating temperature | -20 ... +50 °C |
| Storage temperature | -40 ... +70 °C |
| Vibration (sinusoidal) | IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis |
| Shock (semi-sinusoidal) | IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction |
