    Routering, Drilling & Depaneling

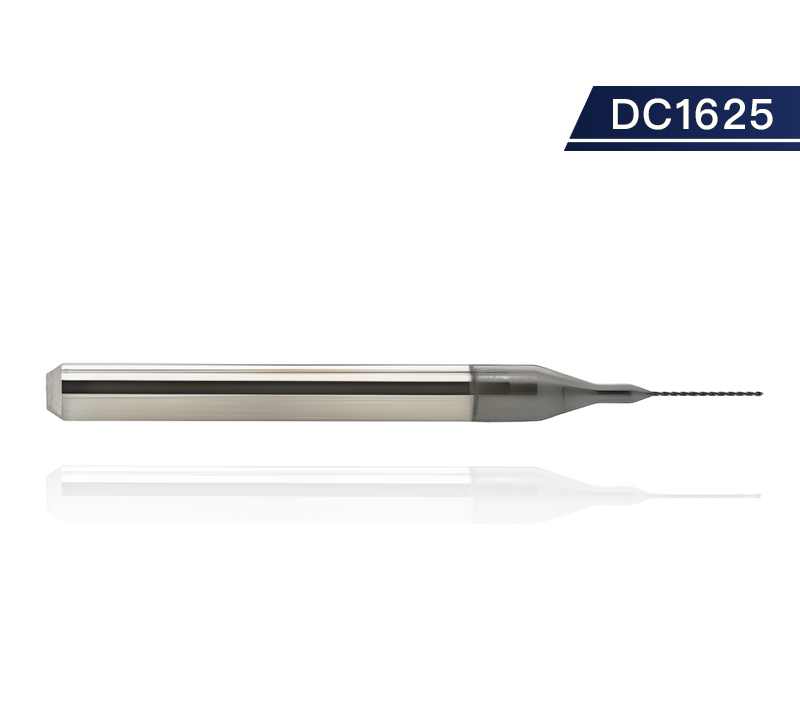

    PCB Diamond Coated Drill Bit

    • DC1625
    smt-double-splice-tape-with-arrow-dc1625-2

    Unit: mm
    Product Overall Length Shank Diameter Flute Diameter Flute Length

    Diamond Coated Drill Bit
    DC1625
    38.1 3.175 0.20 1.5
    38.1 3.175 0.20 3.0
    38.1 3.175 0.25 3.0
    38.1 3.175 0.30 5.5
    38.1 3.175 0.35 5.5
    38.1 3.175 0.40 5.5
    38.1 3.175 0.45 7.0
    38.1 3.175 0.45 11.5
    38.1 3.175 0.48 7.0
    38.1 3.175 0.50 7.0
    38.1 3.175 0.60 7.0
    38.1 3.175 0.70 7.0
    38.1 3.175 0.80 7.0
    38.1 3.175 0.90 7.0
    38.1 3.175 0.98 7.0
    38.1 3.175 1.00 12.0
    38.1 3.175 1.00 12.0
