SMT Splice Tapes & Tools
Features
Application
For jointing carrier tapes in the SMT process
Specification
- Edge positioning design for easy operation and more accurate jointing without tools
- Double-side tape with an extra edge tape for more reliable jointing.
- Machine detective, applicable for Panasonic SMT pick and place machines
Application
For jointing carrier tapes in the SMT process
Specification
| Material | PET |
| Adhesive | Acrylic |
| Peeling-off Force | (N/25mm) by angle 180°≥15 |
| Retaining Time | (H/25*25mm) ＞100 |
| Tensile Strength at Break | (N/25mm)＞4.0 |
| Certificate | RoHS |
| Part No | Description | Color | Width/mm |

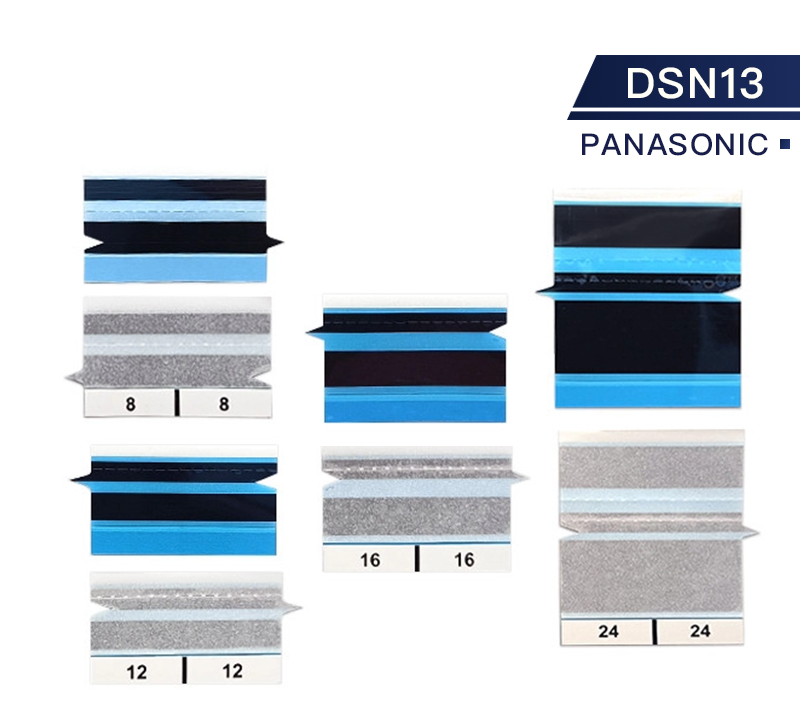

| DSE1308 | SMT Double Splice Tape with Arrow for Panasonic SMT Pick and Place Machine | Yellow/ Black/ Blue/ Green | 08 |
| DSE1312 | SMT Double Splice Tape with Arrow for Panasonic SMT Pick and Place Machine | Yellow/ Black/ Blue/ Green | 12 |
| DSE1316 | SMT Double Splice Tape with Arrow for Panasonic SMT Pick and Place Machine | Yellow/ Black/ Blue/ Green | 16 |
| DSE1324 | SMT Double Splice Tape with Arrow for Panasonic SMT Pick and Place Machine | Yellow/ Black/ Blue/ Green | 24 |
| DSE1332 | SMT Double Splice Tape with Arrow for Panasonic SMT Pick and Place Machine | Yellow/ Black/ Blue/ Green | 32 |
| DSE1344 | SMT Double Splice Tape with Arrow for Panasonic SMT Pick and Place Machine | Yellow/ Black/ Blue/ Green | 44 |
