SMT Splice Tapes & Tools

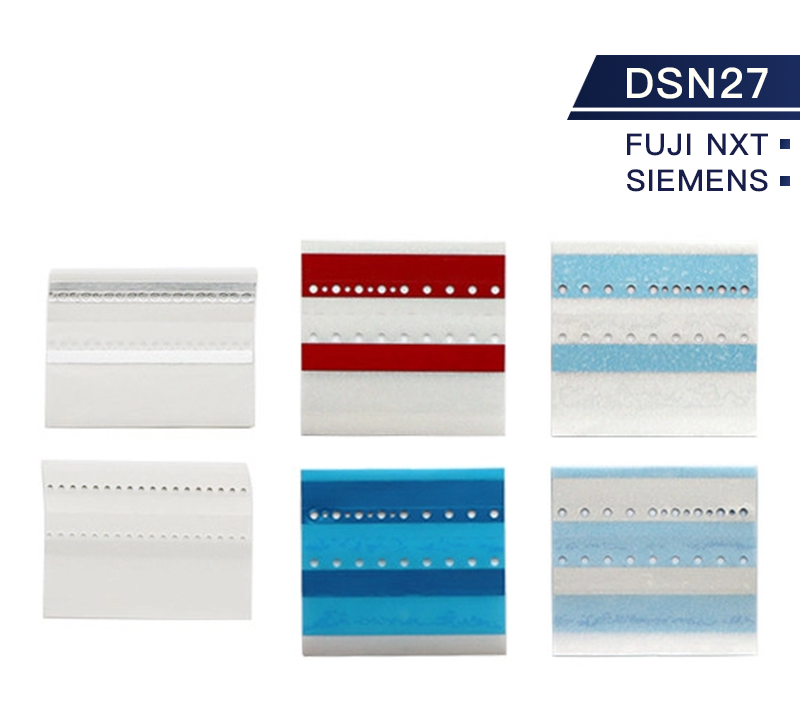

SMT Silver Double Splice Tape
For Fuji NXT and Siemens Pick & Place Machines
Features
For jointing carrier tapes in the SMT process
Specification
- Silver Splice Tape designed for Fuji NXT and Siemens placement machines. Compatible with Model Fuji NXTII, NXT and AIMEX.
- Alignment is achieved without tools or special fixtures by positioning holes
For jointing carrier tapes in the SMT process
Specification
| Material | PET |
| Adhesive | Acrylic |
| Peeling-off Force | (N/25mm) by angle 180°≥15 |
| Retaining Time hours | (H/25*25mm) ＞8 |
| Tensile Strength at Break | (N/25mm)＞2.5 |
| Certificate | RoHS |
| Part No | Description | Color | Width/mm |
| DSN2708 | (4.8/7.6)x36mm | Silver/ Blue/ Red | 08 |
| DSN2712 | (11.6/8.8)x36mm | Silver/ Blue/ Red | 12 |
| DSN2716 | (15.6/12.8)x36mm | Silver/ Blue/ Red | 16 |
| DSN2724 | (23.6/20.8)x36mm | Silver/ Blue/ Red | 24 |
