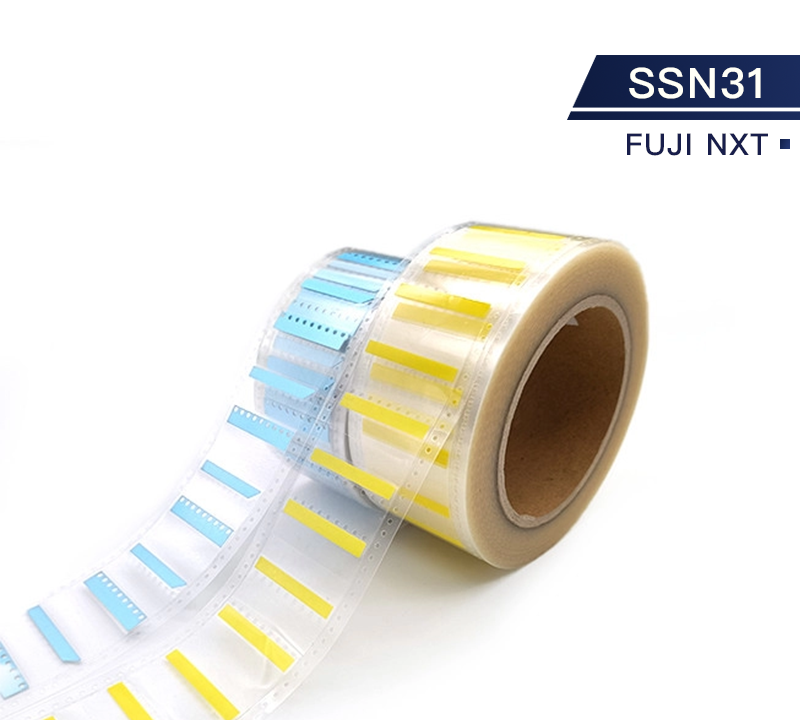

SMT Splice Tapes & Tools
Features
For jointing carrier tapes in the SMT process
Specification
- Compatible with Fuji NXT Pick & Place Machines
- Detective (Silver Color) and Non-Detective (Yellow Color) are available
For jointing carrier tapes in the SMT process
Specification
| Material | PET |
| Adhesive | Acrylic |
| Peeling-off Force | (N/25mm) by angle 180°≥15 |
| Retaining Time hours | (H/25*25mm) ＞8 |
| Tensile Strength at Break | (N/25mm)＞2.5 |
| Certificate | RoHS |
| Part No | Description | Color | Width/mm | Pack pcs/reel |
| SSN310801 | Detective (4.5/7.4)x36mm | Silver | 08 | 1,200 |
| SSN310802 | Non- Detective (4.5/7.4)x36mm | Yellow | 08 | 1,200 |
