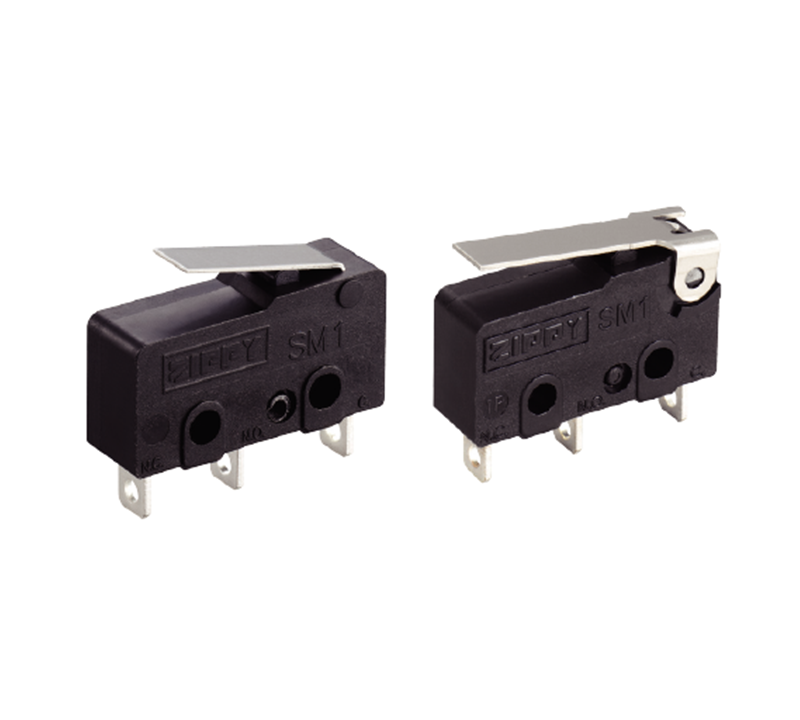

    Snap Action Microswitches Micro Switches SM1

    SM1

    add to cart Inquiry Now
    SPECIFICATIONS
    Operating frequency(mechanical):
       120 Operation / mim
    Operating frequency(electrical):
       10~30 Operation / mim
    Contact resistance:
       300m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Service life(electrical)
       Min. 10,000 Operations


    RATING
    0.1A/3A/6A/10.1A/16A 125/250VAC

    APPLICATION
    Telephone
    Air Conditioner
    Computer
    Humidifier
    Alarm
    Time Recorder
    Mixer
    Chopper
    Solder Gun
    Neon Phone
    Fax Machine
    Joystick
    Water Pump
    Gas Detector
    Pencil Sharpener
    Money Sorter
    Food Processor
    Electric Knife
    Toy Car
    Juicer
    Electric Steak Pan

    DIMENSIONS
    Snap-Action-Microswitches-Micro-Switches-SM1-5

    CONTACT CONFIGURATION
    Snap-Action-Microswitches-Micro-Switches-SM1-3

    OPERATING FORCE
    Snap-Action-Microswitches-Micro-Switches-SM1-2

    ORDER INFORMATION
    Snap-Action-Microswitches-Micro-Switches-SM1-4

    TERMINAL TYPES
    Snap-Action-Microswitches-Micro-Switches-SM1-3


    OPERATING CHARACTERISTICS
    Snap-Action-Microswitches-Micro-Switches-SM1-6
