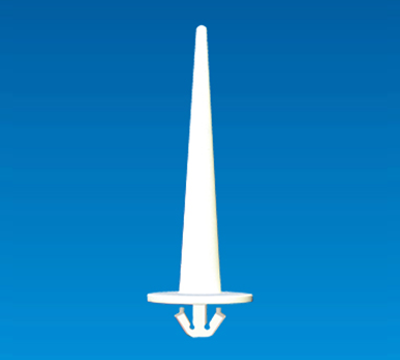

SNAP IN SPACER FOR BACKLIGHT MODULE CBD-28AP
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.

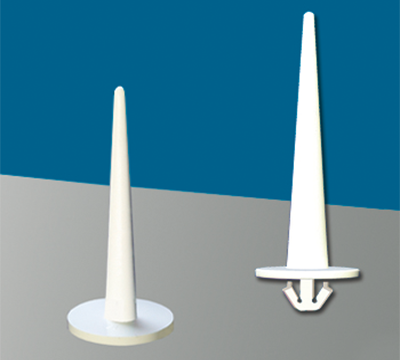

SNAP IN SPACER FOR BACKLIGHT MODULE CBD-28AP
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SPECIFICATION
- MATERIAL: PC
- FLAME CLASS: 94V-0
- COLOR: WHITE

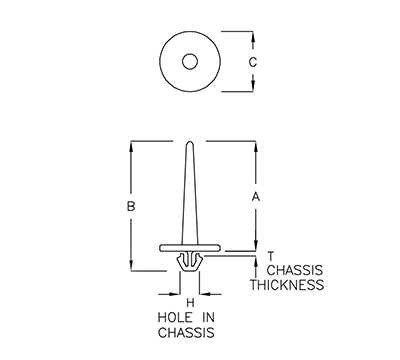

| PART NO | A | B | C | H HOLE IN CHASSIS |
T CHASSIS THUCKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| CBD-28AP | 28.5 | 32.05 | Ø10.0 | Ø3.8 | 0.6~0.8 | 500 |
| CBD-28PQ | 28.8 | 32.55 | Ø10.0 | Ø3.8 | 0.9~1.0 | |
| CBD-29M | 29.5 | 33.05 | Ø10.0 | Ø3.8 | 0.6~0.8 | |
| CBD-31MA | 31.5 | 35.05 | Ø10.0 | Ø3.8 | 0.6~0.8 |
