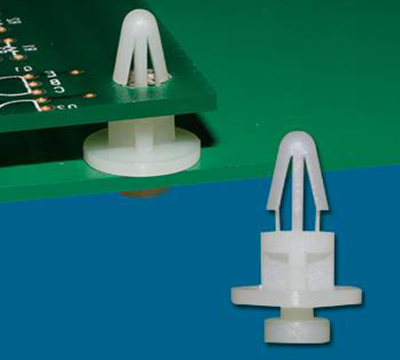

SPACER SUPPORT ACBS-2
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.

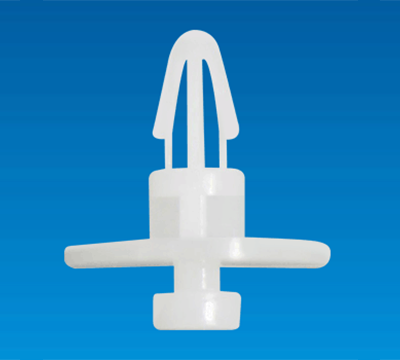

SPACER SUPPORT ACBS-2
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
-
COLOR: NATURAL

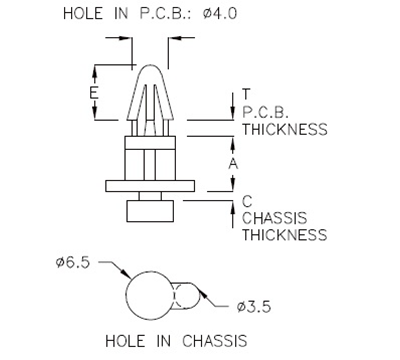

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| ACBS-2 | 2.5 | 1.4~1.7 | 0.8~1.4 | 7.1 | 1000 |
| ACBS-3A | 3.5 | 1.4~1.7 | 0.8~1.0 | 7.1 | 1000 |
| ACBS-5 | 5.0 | 1.2~1.7 | 0.8~1.4 | 7.1 | 1000 |
| ACBS-6 | 6.5 | 1.2~1.7 | 0.8~1.2 | 7.3 | 1000 |
| ACBS-6B | 6.35 | 1.4~1.9 | 0.8~1.4 | 7.1 | 1000 |
| ACBS-6C | 6.35 | 1.4~2.0 | 0.8~1.4 | 7.2 | 1000 |
| ACBS-6M | 6.85 | 1.2~1.6 | 0.5~0.8 | 7.0 | 1000 |
| ACBS-8 | 8.0 | 1.4~1.8 | 0.8~1.4 | 7.1 | 1000 |
| ACBS-10 | 10.0 | 1.4~1.8 | 0.8~1.5 | 7.1 | 1000 |
| ACBS-12 | 12.7 | 1.4~1.8 | 1.0~1.6 | 7.1 | 1000 |
