    Components & Accessories

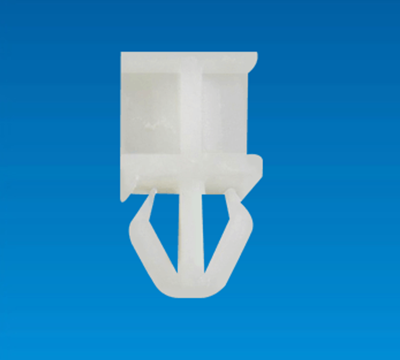

    SPACER SUPPORT CH-08F

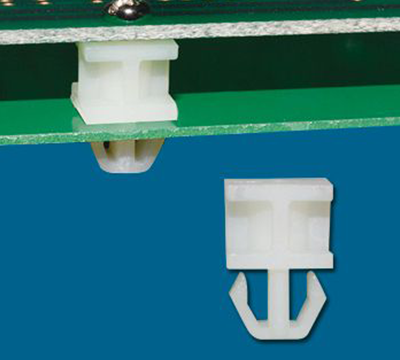

    • Snap fit to joint PCB with chassis.
    • Provides distance and space between Circuit boards.
    • Easily assembly for application.
    SPACER SUPPORT CH-08F

    FEATURES
    • Snap fit to joint PCB with chassis.
    • Provides distance and space between Circuit boards.
    • Easily assembly for application.

    SPECIFICATION
    • MATERIAL: NYLON66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL
    • SCREW: TAPPING SCREW M3

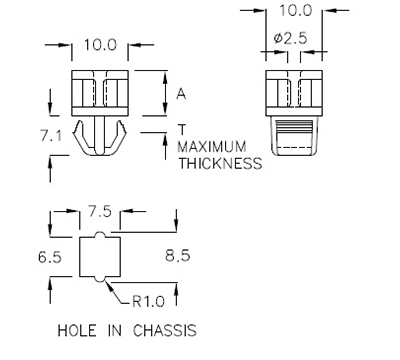

    spacer-support-ch-08f-2

    PART NO A T
    MAXIMUM
    THICKNESS
    PACKAGE
    CH-08F 8.0 2.0 500
    CH-10K 10.0 1.4 500
