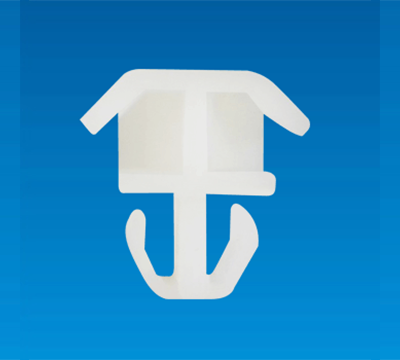

SPACER SUPPORT CH-08K

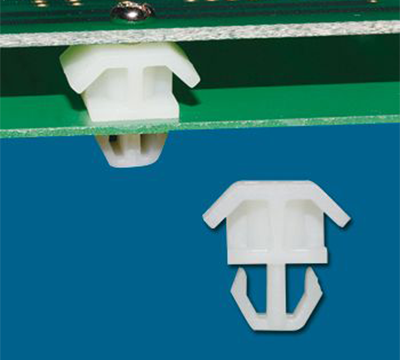

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPACER SUPPORT CH-08K
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: TAPPING SCREW M3

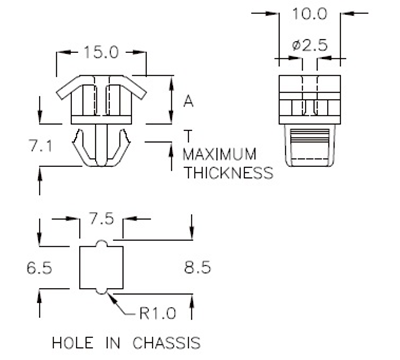

| PART NO | A | T MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|
| CH-08K | 8.0 | 2.0 | 500 |
