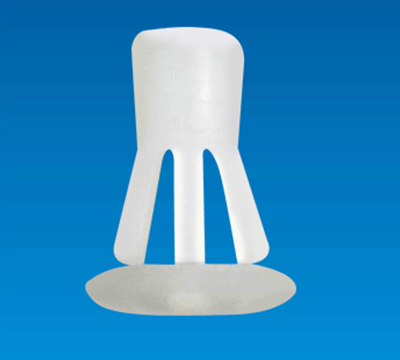

SPACER SUPPORT FCB-4M

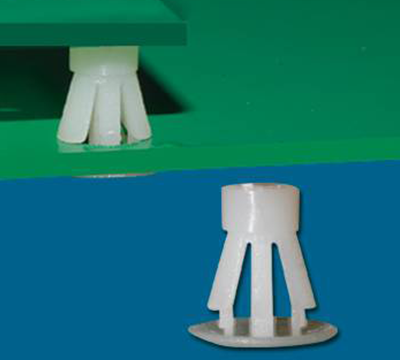

- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT FCB-4M
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
-
HOLE IN CHASSIS: Ø5.5

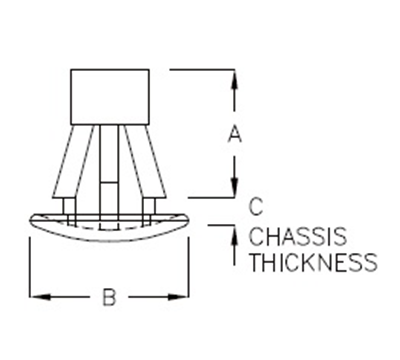

| PART NO | A | B | C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|
| FCB-4M | 4.5 | Ø9.8 | 0.8~1.2 | 1000 |
| FCB-5 | 5.0 | Ø11.5 | 1.4~2.0 | 1000 |
| FCB-6 | 6.35 | Ø10.4 | 1.0~2.0 | 1000 |
| FCB-6A | 6.35 | Ø10.0 | 1.5~2.3 | 1000 |
| FCB-7 | 7.0 | Ø10.4 | 1.3~1.9 | 1000 |
| FCB-8 | 8.0 | Ø9.8 | 1.0~1.4 | 1000 |
| FCB-10 | 10.0 | Ø9.8 | 1.0~1.4 | 1000 |
| FCB-10A | 10.0 | Ø11.5 | 1.4~2.0 | 1000 |
| FCB-12 | 12.7 | Ø9.8 | 1.0~1.4 | 1000 |
| FCB-12A | 12.7 | Ø9.9 | 1.2~2.2 | 1000 |
| FCB-14 | 13.9 | Ø9.9 | 1.5~2.0 | 500 |
| FCB-15 | 15.7 | Ø9.8 | 1.6~2.2 | 500 |
