Components & Accessories
SPACER SUPPORT FKC-31Y

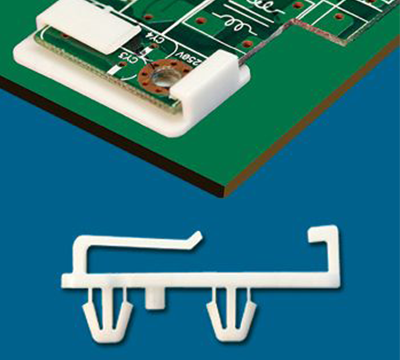

- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with screw to increase the strength of holding PCB.

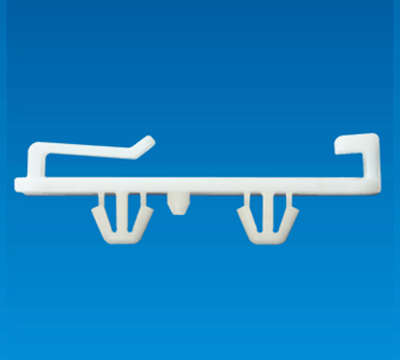

SPACER SUPPORT FKC-31Y
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with screw to increase the strength of holding PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

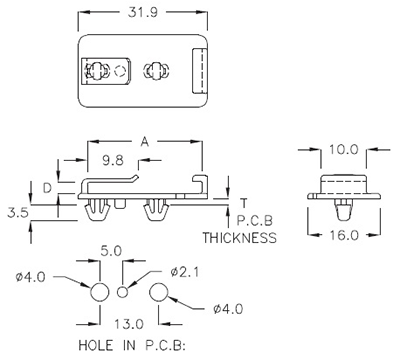

| PART NO | A | D | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|
| FKC-31AP | 28.7 | 1.7 | 0.5~0.8 | 200 |
| FKC-31Y | 28.7 | 2.5 | 0.6~0.8 | 200 |
