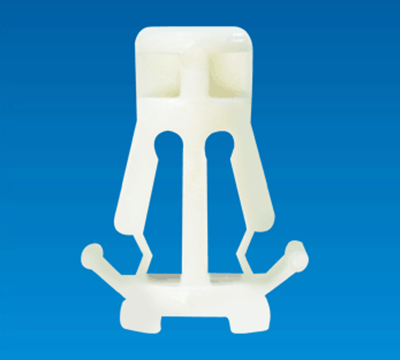

SPACER SUPPORT KDH-09

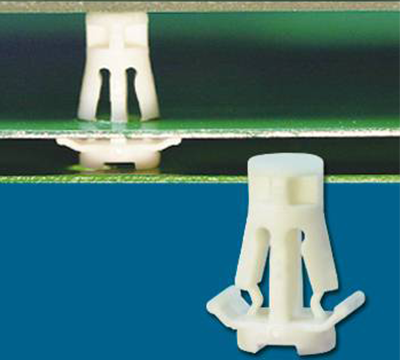

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT KDH-09
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
-

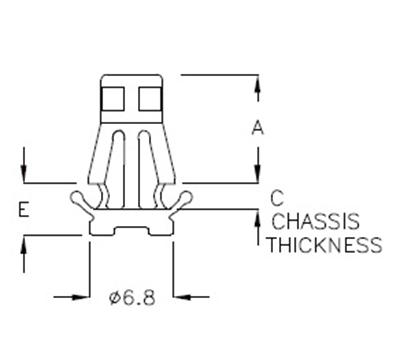

HOLE IN CHASSIS: Ø5.6
| PART NO | A | C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| KDH-09 | 9.0 | 0.8~1.6 | 4.3 | 1000 |
