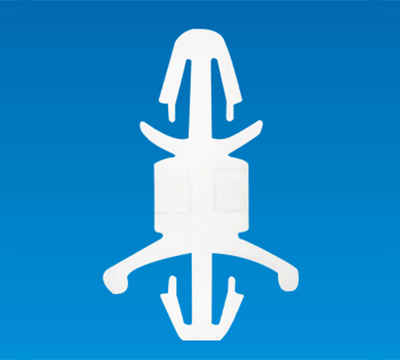

SPACER SUPPORT LBC-03

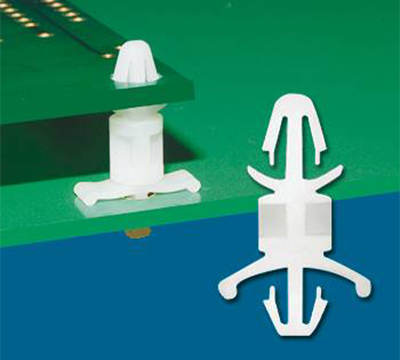

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPACER SUPPORT LBC-03
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

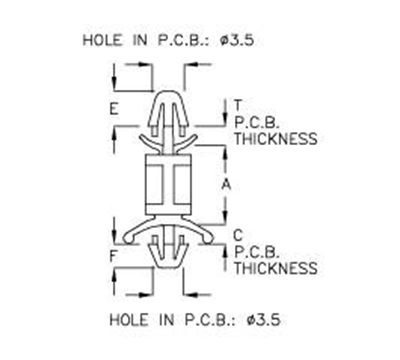

PART NO
|
A
|
T
P.C.B THICKNESS |
C
P.C.B THICKNESS |
E
|
F
|
PACKAGE
|
|---|---|---|---|---|---|---|
|
LBC-03
|
3.0
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
1000
|
|
LBC-04
|
4.0
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-5A
|
5.0
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-05
|
5.35
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-6A
|
6.35
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-06
|
6.75
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-07
|
7.0
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-7A
|
7.5
|
1.2~1.7
|
0.8~1.6
|
4.0
|
2.5
|
|
|
LBC-8A
|
8.0
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-08
|
8.35
|
1.0~1.6
|
0.8~1.6
|
4.0
|
2.8
|
|
|
LBC-09
|
9.60
|
1.0~1.6
|
0.8~2.0
|
4.0
|
2.4
|
|
|
LBC-11
|
11.2
|
1.0~1.6
|
0.8~2.0
|
4.0
|
2.4
|
|
|
LBC-12
|
12.7
|
1.0~1.6
|
0.8~2.0
|
4.0
|
2.4
|
|
|
LBC-16
|
16.0
|
1.0~1.6
|
0.8~2.0
|
4.0
|
2.4
|
