Components & Accessories

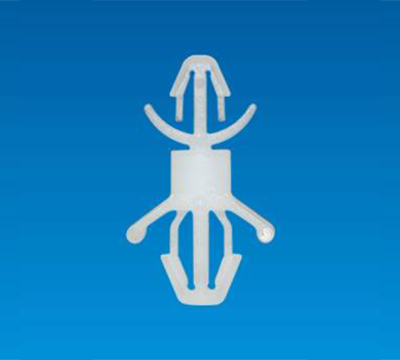

SPACER SUPPORT LBCM-5GA

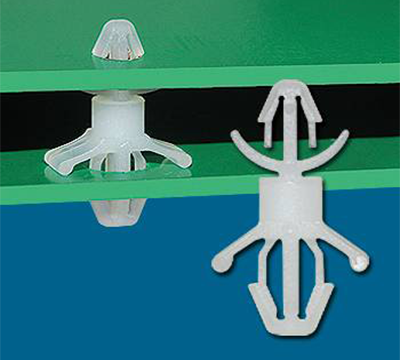

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LBCM-5GA
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

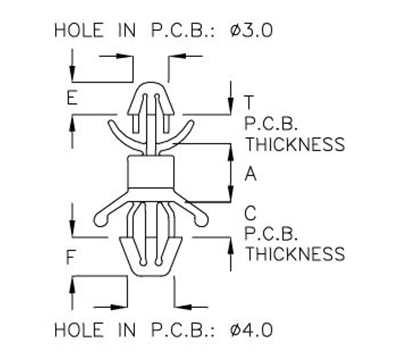

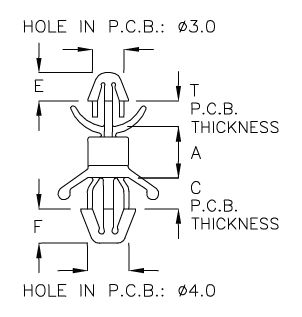

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
| LBCM-5GA | 5.0 | 0.8~2.0 | 1.2~2.6 | 2.8 | 3.4 | 1000 |
