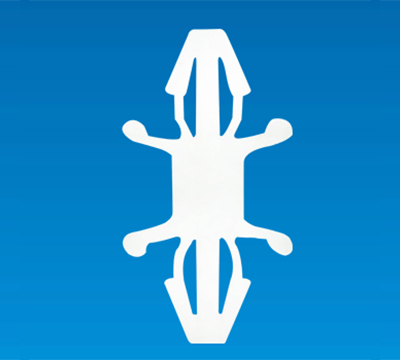

SPACER SUPPORT LCA35-3

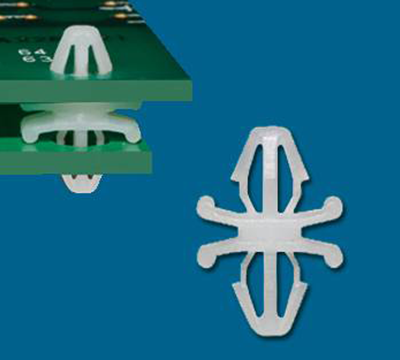

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design, provide a tight fit.
SPACER SUPPORT LCA35-3
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

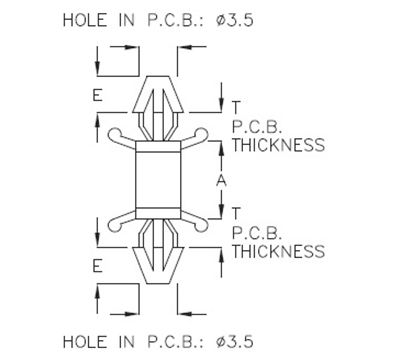

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| LCA35-3 | 2.1 | 0.8~2.0 | 3.5 | 1000 |
| LCA35-3A | 3.0 | 0.8~2.0 | 3.4 | |
| LCA35-3M | 3.5 | 0.8~2.0 | 3.4 | |
| LCA35-4 | 4.0 | 0.8~2.0 | 3.4 | |
| LCA35-5 | 4.8 | 0.8~2.0 | 3.5 | |
| LCA35-5M | 5.5 | 0.8~2.0 | 3.4 | |
| LCA35-7 | 7.0 | 0.8~2.0 | 3.5 | |
| LCA35-10 | 10.0 | 0.8~2.0 | 3.5 | |
| LCA35-18 | 18.0 | 1.1~1.7 | 3.5 | |
| LCA35-20 | 20.0 | 1.0~1.6 | 3.5 | |
| LCA35-21 | 20.8 | 1.2~1.6 | 3.5 | |
| LCA35-25 | 25.0 | 1.4~1.6 | 3.4 | 500 |
