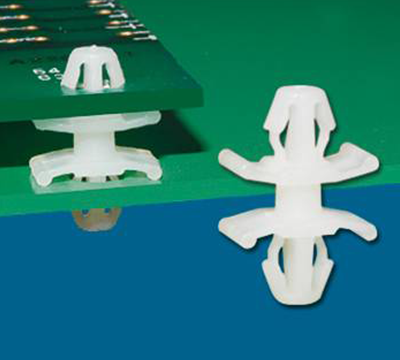

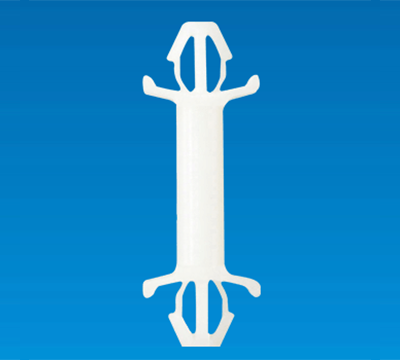

SPACER SUPPORT LCA4-4
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LCA4-4
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

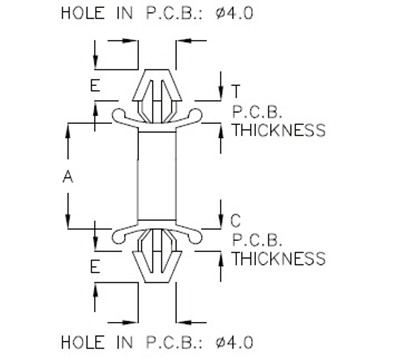

PART NO
|
A
|
T
P.C.B
THICKNESS
|
C
P.C.B
THICKNESS
|
E
|
PACKAGE
|
|---|---|---|---|---|---|
|
LCA4-4
|
4.0
|
1.0~1.6
|
1.0~1.6
|
3.4
|
1000
|
|
LCA4-5
|
4.9
|
1.6~1.9
|
1.6~1.9
|
3.0
|
|
|
LCA4-6
|
6.0
|
1.0~1.6
|
1.0~1.6
|
3.4
|
|
|
LCA4-7
|
7.0
|
1.0~1.6
|
1.0~1.6
|
3.4
|
|
|
LCA4-8
|
7.1
|
1.2~1.8
|
1.2~1.8
|
3.6
|
|
|
LCA4-8A
|
7.6
|
2.5~3.0
|
2.5~3.0
|
2.6
|
|
|
LCA4-9
|
8.8
|
1.6~2.0
|
1.6~2.0
|
3.0
|
|
|
LCA4-10
|
10.0
|
1.2~2.0
|
1.2~2.0
|
3.6
|
|
|
LCA4-10A
|
10.4
|
1.1~1.8
|
1.6~3.1
|
3.6
|
|
|
LCA4-12
|
13.1
|
1.1~2.0
|
1.2~2.0
|
3.6
|
|
|
LCA4-15
|
15.9
|
1.1~2.0
|
1.1~2.0
|
3.6
|
|
|
LCA4-16
|
16.2
|
1.3~2.2
|
1.3~2.2
|
3.6
|
|
|
LCA4-17
|
17.2
|
1.1~2.0
|
1.1~2.0
|
3.6
|
|
|
LCA4-20A
|
19.6
|
1.1~2.0
|
1.7~3.5
|
3.6
|
500
|
|
LCA4-29M
|
29.5
|
1.0~1.7
|
1.0~1.7
|
3.6
|
|
|
LCA4-31
|
30.8
|
1.0~1.7
|
1.0~1.7
|
3.6
|
|
|
LCA4-34A
|
34.0
|
1.1~1.9
|
1.6~3.1
|
3.6
|
|
|
LCA4-34C
|
34.0
|
0.8~2.0
|
1.7~3.5
|
3.6
|
|
|
LCA4-36
|
36.0
|
2.0~3.0
|
2.0~3.0
|
3.6
|
|
|
LCA4-36A
|
35.3
|
2.5~3.8
|
2.5~3.8
|
3.6
|
|
|
LCA4-44
|
43.6
|
0.8~1.9
|
0.8~1.9
|
3.6
|
|
|
LCA4-55
|
55.0
|
0.8~1.8
|
0.8~1.8
|
3.6
|
200
|
|
LCA4-56
|
56.4
|
1.0~1.6
|
1.0~1.6
|
3.6
|
