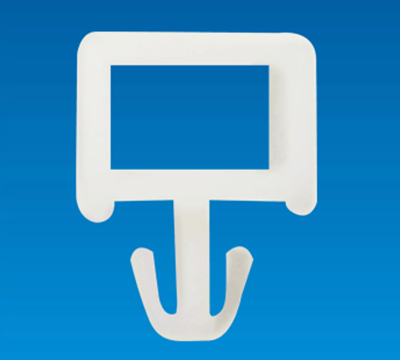

SPACER SUPPORT LD-10A

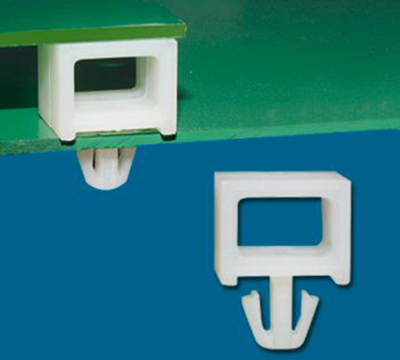

- Snap fit to joint PCB with chassis.
- Push Spacer with cushion.
- Flexible spacer absorbs vibration and shock.
- Easily assembly for application.
SPACER SUPPORT LD-10A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Push Spacer with cushion.
- Flexible spacer absorbs vibration and shock.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

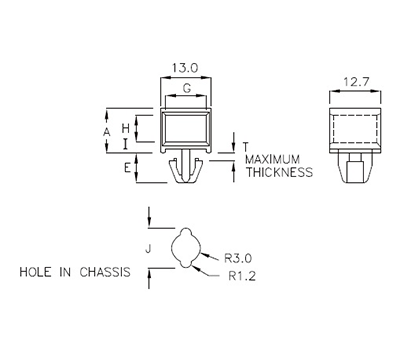

| PART NO | A | E | G | H | I | J | T MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
| LD-10A | 10.6 | 7.2 | 9.5 | 6.1 | 2.5 | 8.4 | 1.6 | 500 |
| LD-12C | 12.6 | 7.1 | 9.1 | 8.2 | 2.65 | 9.4 | 1.6 | 500 |
