Components & Accessories

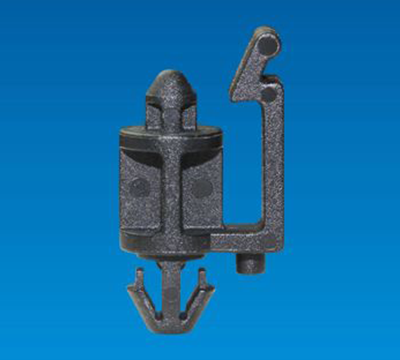

SPACER SUPPORT LMG-7JK

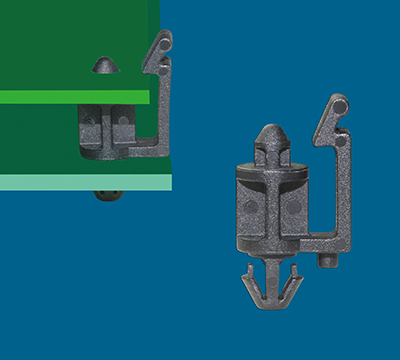

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Easily removed for repairing or changing.
SPACER SUPPORT LMG-7JK
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK

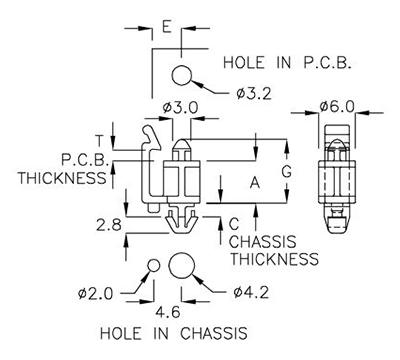

| PART NO | A | G | E | T P.C.B. THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| LMG-7JK | 7.0 | 10.5 | 4.83 | 1.6 | 1.93 | 1000 |
