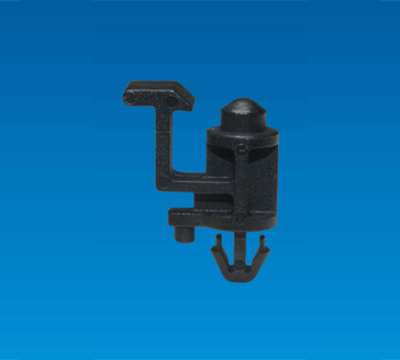

SPACER SUPPORT LMQ-8HR

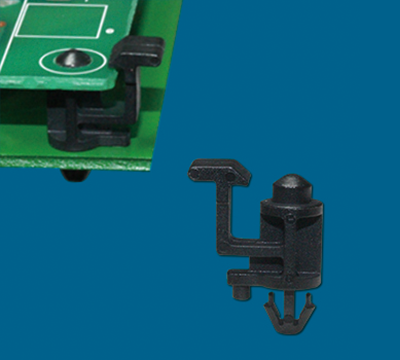

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT LMQ-8HR
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL:NYLON66(UL)
- FLAME CLASS:94V-2
- COLOR:BLACK

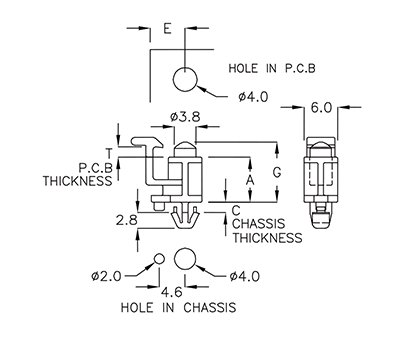

| PART NO | A | G | E | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| LMQ-8HR | 8.0 | 10.7 | 5.3 | 1.6 | 1.6 | 1000 |
