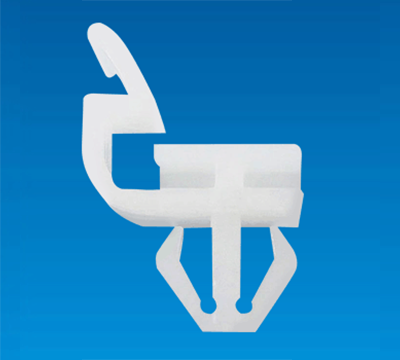

    SPACER SUPPORT LS-4C

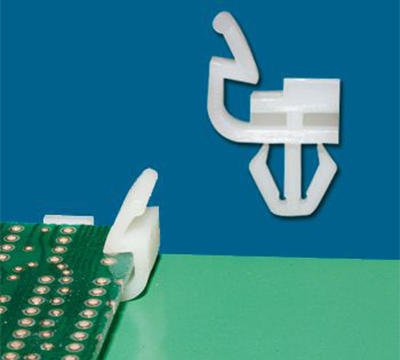

    • Snap fit to joint PCB with chassis or other PCB.
    • Provides distance, space and support between Circuit boards.
    • One piece design, no screws, nuts and washers needed.
    • Locking arm clip design, easy to remove and replace.
    SPACER SUPPORT LS-4C

    FEATURES
    • Snap fit to joint PCB with chassis or other PCB.
    • Provides distance, space and support between Circuit boards.
    • One piece design, no screws, nuts and washers needed.
    • Locking arm clip design, easy to remove and replace.


    SPECIFICATION
    • MATERIAL: NYLON66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL

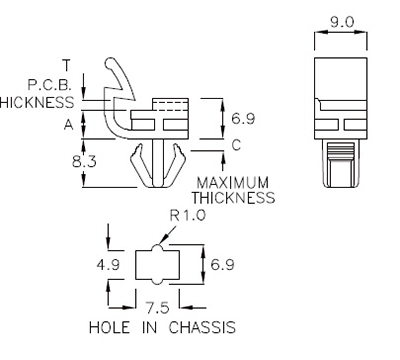

    spacer-support-ls-4c-3

    PART NO A T
    P.C.B.
    THICKNESS
    C
    MAXIMUM
    THICKNESS
    PACKAGE
    LS-4C 4.9 1.4~1.6 1.6 500
