SPACER SUPPORT LSC-5

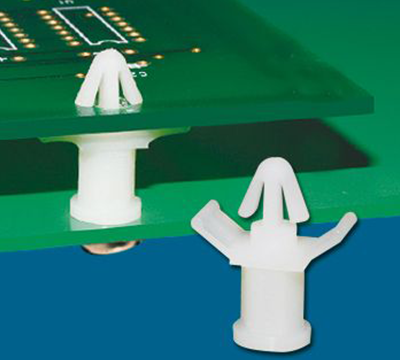

- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with tapping screw to increase the strength of holding PCB.
- Tension wings design on both ends, provide a tight fit.

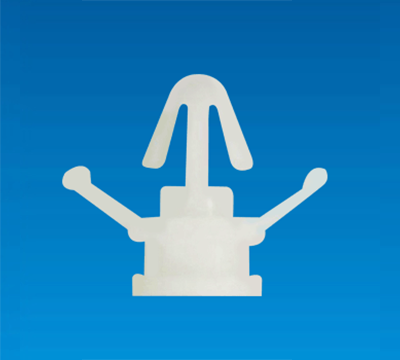

SPACER SUPPORT LSC-5
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with tapping screw to increase the strength of holding PCB.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

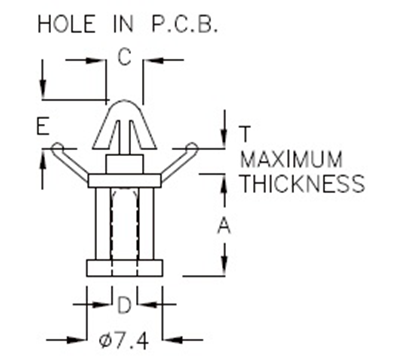

PART NO
|
A
|
C
|
T
MAXIMUM
THICKNESS
|
D
TAPPING
SCREW
|
E
|
PACKAGE
|
|---|---|---|---|---|---|---|
|
LSC-5
|
4.8
|
Ø4.8~Ø5.0
|
2.0
|
M3
|
5.6
|
1000
|
|
LSC-10
|
9.4
|
Ø4.8~Ø5.0
|
2.0
|
M3
|
5.6
|
|
|
LSC-12
|
12.7
|
Ø4.8~Ø5.0
|
2.0
|
M3
|
5.6
|
500
|
|
LSC-15A
|
15.9
|
Ø4.5~Ø4.6
|
2.0
|
M3
|
5.6
|
|
|
LSC-19
|
19.1
|
Ø4.5~Ø4.6
|
2.0
|
M3
|
5.6
|
