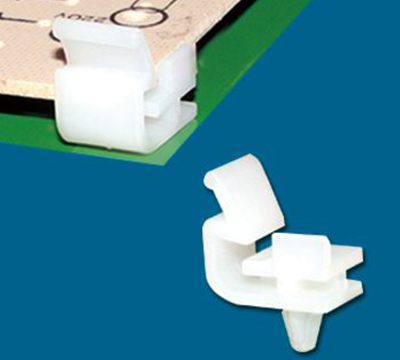

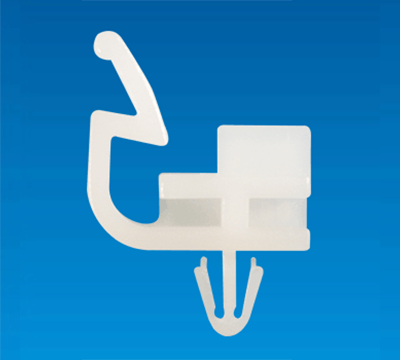

SPACER SUPPORT LSK-6P
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT LSK-6P
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

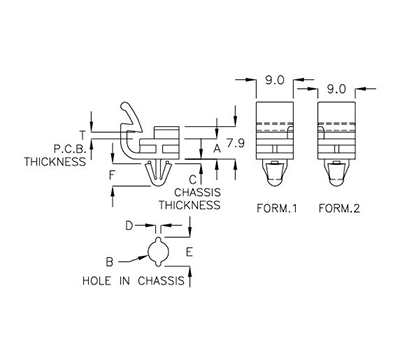

PART NO
|
A
|
B
|
D
|
E
|
F
|
T
P.C.B
THICKNESS
|
C
CHASSIS
THICKNESS
|
FORM
|
PACKAGE
|
|---|---|---|---|---|---|---|---|---|---|
|
LSK-6P
|
4.9
|
Ø5.0
|
Ø1.3
|
7.0
|
5.4
|
1.4~1.6
|
0.6~0.8
|
1
|
500
|
|
LSK-6Q
|
4.9
|
Ø3.5
|
Ø1.2
|
5.5
|
4.5
|
1.4~1.6
|
0.6~0.8
|
2
|
