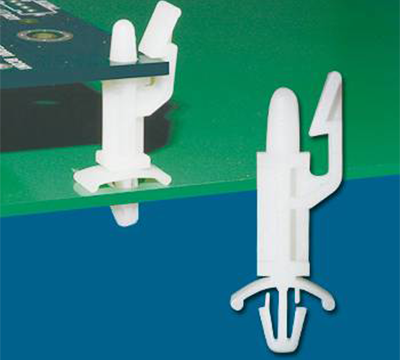

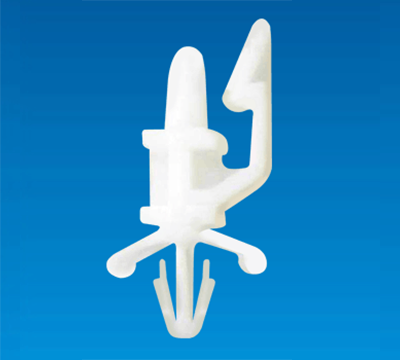

SPACER SUPPORT LT-10
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT LT-10
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

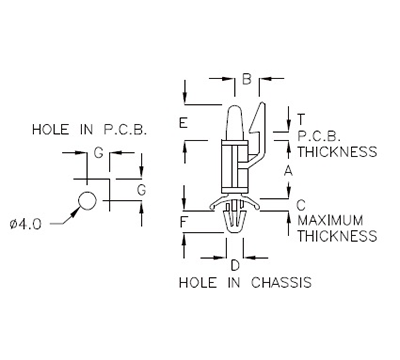

| PART NO | A | B | D | T P.C.B T HICKNESS |
C MAXIMUM THICKNESS |
E | F | G | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
| LT-10 | 9.2 | 5.5 | Ø4.0 | 0.8~2.0 | 2.0 | 7.4 | 5.2 | 5.0 | 500 |
| LT-12 | 11.9 | 5.5 | Ø4.0 | 0.8~2.0 | 2.0 | 7.4 | 4.5 | 5.0 | |
| LT-15 | 15.1 | 5.5 | Ø4.0 | 0.8~2.0 | 2.0 | 7.4 | 5.2 | 5.0 | |
| LT-18 | 17.2 | 5.5 | Ø4.0 | 0.8~2.0 | 2.0 | 7.4 | 5.2 | 5.0 | |
| LT-26 | 26.2 | 6.4 | Ø5.0 | 0.8~2.0 | 2.0 | 15.0 | 5.2 | 6.0 |
