Components & Accessories

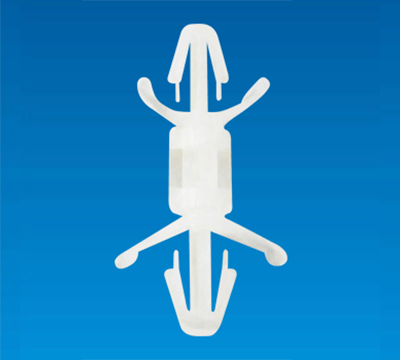

SPACER SUPPORT LTBS-6

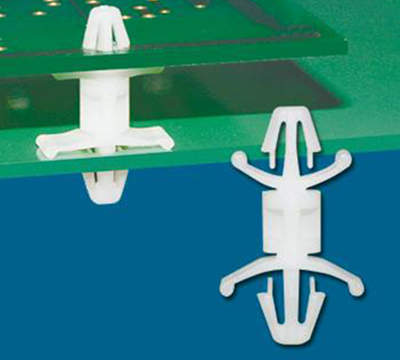

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LTBS-6
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

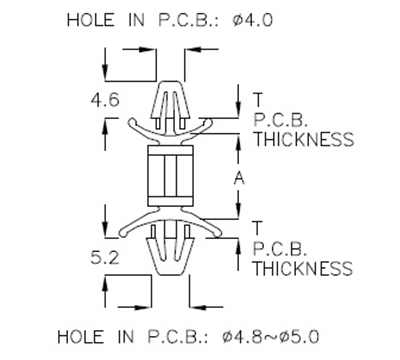

| PART NO | A | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|
| LTBS-6 | 6.35 | 0.8~1.7 | 500 |
| LTBS-10 | 9.4 | 0.8~1.7 | |
| LTBS-12 | 12.7 | 0.8~1.7 | |
| LTBS-15 | 15.9 | 0.8~1.7 | |
| LTBS-19 | 19.1 | 0.8~1.7 | |
| LTBS-21 | 20.5 | 0.8~1.7 | |
| LTBS-22 | 22.2 | 0.8~1.7 |
