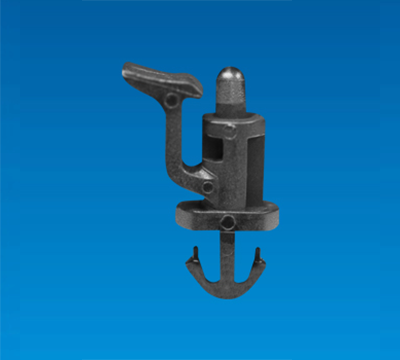

SPACER SUPPORT LTN-7C
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT LTN-7C
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
| PART NO | A | G | T P.C.B. THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LSQ-10 | 7.85 | 11.4 | 1.0~1.2 | 1.4~1.6 | 1000 |
| LTN-7F | 7.85 | 11.4 | 1.0~1.2 | 2.0~2.15 | 1000 |
| LTN-9K | 9.0 | 12.6 | 1.2~1.6 | 2.15 | 1000 |
