Components & Accessories
SPACER SUPPORT MA-005

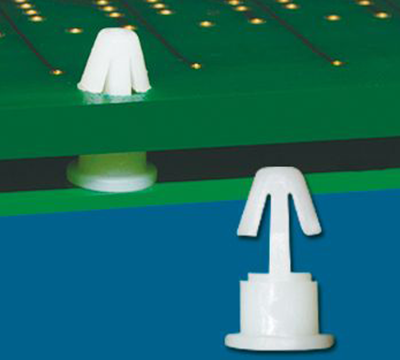

- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- One piece design, no screw, nut and washer needed.

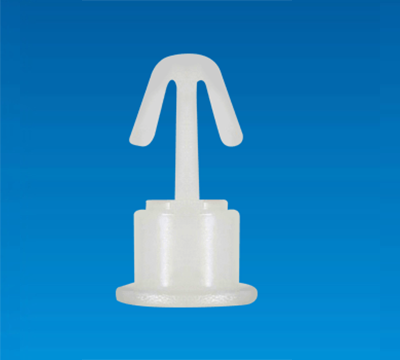

SPACER SUPPORT MA-005
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- One piece design, no screw, nut and washer needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

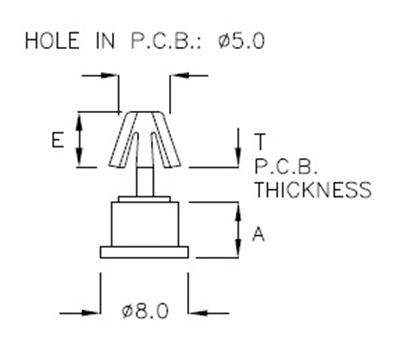

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| MA-005 | 5.0 | 2.8~3.0 | 5.1 | 1000 |
| MA-012 | 12.0 | 2.8~3.0 | 5.0 | 500 |
| MA-014 | 14.0 | 2.8~3.0 | 5.0 | 500 |
