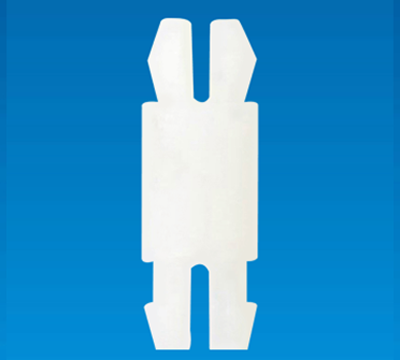

SPACER SUPPORT MCB-3

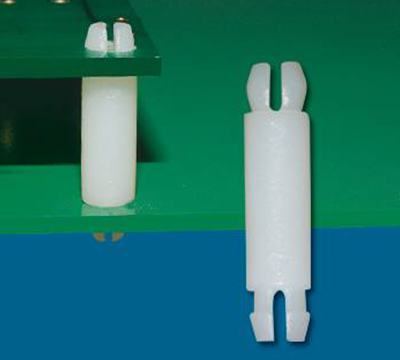

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- Install quickly by hand.
- One piece design no screw, nut, washer needed.
SPACER SUPPORT MCB-3
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- Install quickly by hand.
- One piece design no screw, nut, washer needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|
PART NO
|
A
|
B
|
T
P.C.B
THICKNESS
|
E
|
F
|
PACKAGE
|
|---|---|---|---|---|---|---|
|
MCB-3
|
3.2
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.1
|
2000
|
|
MCB-6
|
6.35
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.3
|
|
|
MCB-8
|
8.2
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.2
|
|
|
MCB-10
|
10.5
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.1
|
|
|
MCB-12
|
12.7
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.2
|
|
|
MCB-15
|
15.7
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.2
|
1000
|
|
MCB-19
|
19.1
|
Ø4.0
|
0.8~1.6
|
3.6~3.8
|
2.2
|
|
|
MCB-28
|
28.5
|
Ø3.85
|
0.8~1.6
|
3.6~3.8
|
1.8
|
|
|
MCB-30A
|
30.7
|
Ø3.85
|
0.8~1.6
|
3.6~3.8
|
1.8
|
