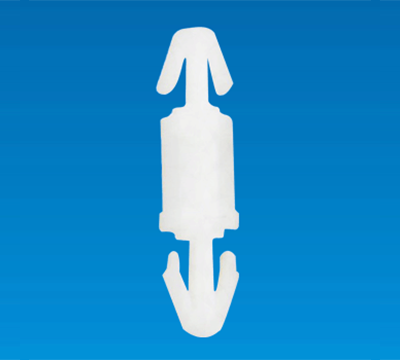

SPACER SUPPORT MCF-6A

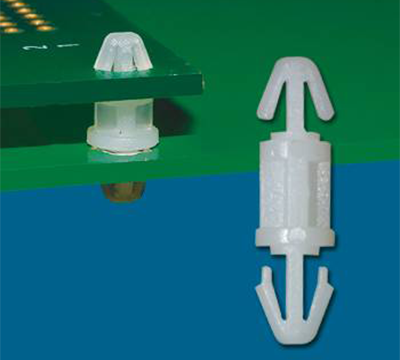

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual locking head design.
SPACER SUPPORT MCF-6A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual locking head design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

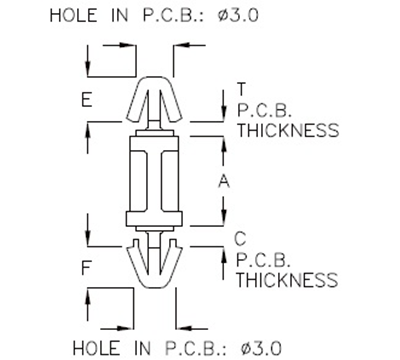

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
| MCF-6A | 6.0 | 0.8~1.01.2~1.7 | 1.2~1.7 | 3.6 | 3.6 | 2000 |
| MCF-3RK | 3.1 | 1.0~1.35 | 1.5~1.7 | 3.5 | 2.5 | 2000 |
