    Components & Accessories

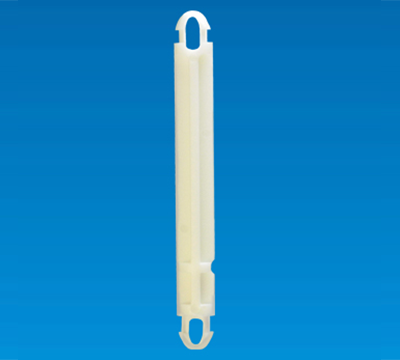

    SPACER SUPPORT MCH-28A

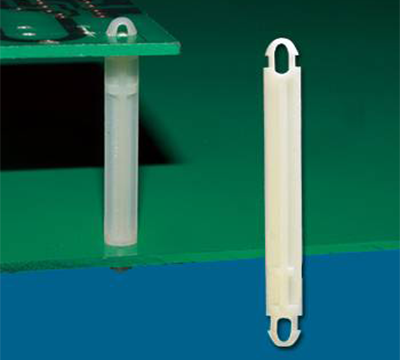

    • Snap fit to joint PCB with chassis.
    • Provides distance and space between Circuit board and chassis.
    • Square hole fitting.
    • Easily assembly.
    SPACER SUPPORT MCH-28A

    FEATURES
    • Snap fit to joint PCB with chassis.
    • Provides distance and space between Circuit board and chassis.
    • Square hole fitting.
    • Easily assembly.

    SPECIFICATION
    • MATERIAL: NYLON66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL

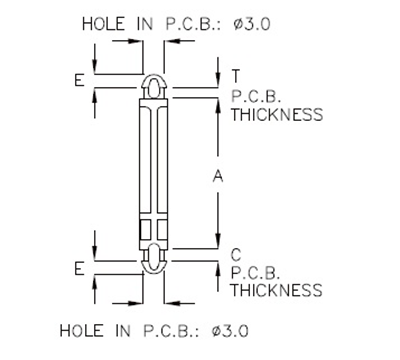

    spacer-support-mch-28a-2

    PART NO A T
    P.C.B
    THICKNESS
    C
    P.C.B
    THICKNESS
    E PACKAGE
    MCH-28A 28.2 1.0~1.2 1.4~1.6 1.9 500
