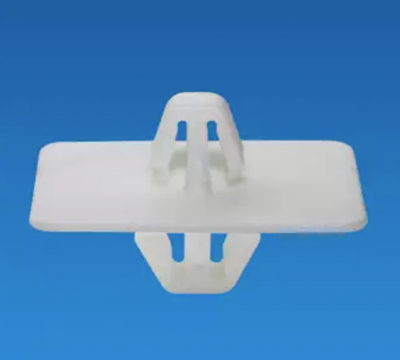

SPACER SUPPORT MCI-1GS

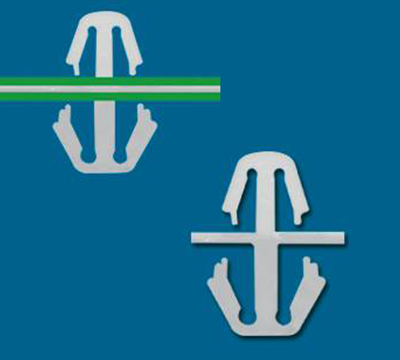

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT MCI-1GS
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

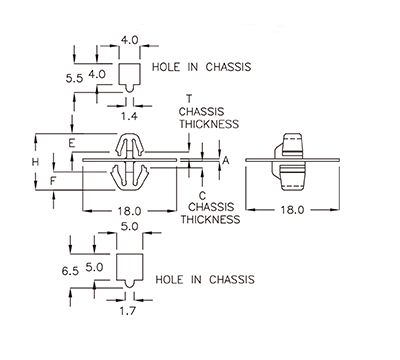

| PART NO | A | T CHASSIS THICKNESS |
C CHASSIS THICKNESS |
E | F | H | PACKAGE |
|---|---|---|---|---|---|---|---|
| MCI-1GS | 0.5 | 1.0 | 1.0~1.5 | 3.5 | 3.5 | 10.8 | 1000 |
| MCI-1JR | 0.5 | 5.0 | 1.0~1.5 | 3.5 | 3.5 | 10.1 |
