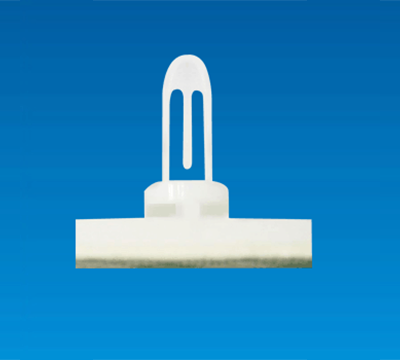

SPACER SUPPORT MS-6

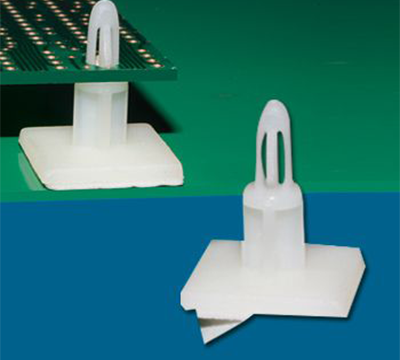

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
SPACER SUPPORT MS-6
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M
|

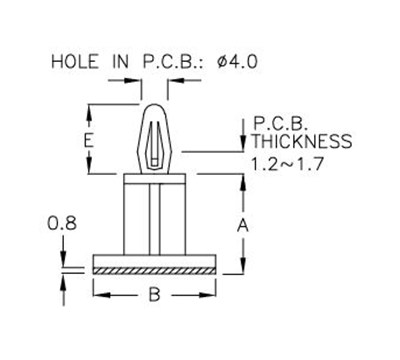

PART NO
|
A
|
E
|
B
|
ADHESIVE
AREA |
PACKAGE
|
|---|---|---|---|---|---|
|
MS-6
|
6.25
|
10.2
|
18.0
|
18.0x18.0
|
500
|
|
MS-8
|
7.9
|
9.7
|
18.0
|
18.0x18.0
|
|
|
MS-10
|
9.5
|
10.2
|
18.0
|
18.0x18.0
|
|
|
MS-11A
|
11.5
|
4.9
|
18.0
|
18.0x18.0
|
|
|
MS-12
|
12.6
|
10.3
|
18.0
|
18.0x18.0
|
|
|
MS-16A
|
16.4
|
10.2
|
19.9
|
19.9x19.9
|
|
|
MS-19
|
19.3
|
10.2
|
18.0
|
18.0x18.0
|
200
|
|
MS-22
|
22.2
|
9.6
|
18.0
|
18.0x18.0
|
