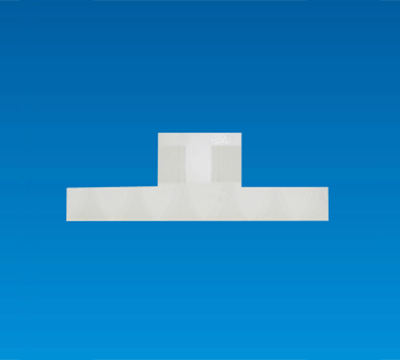

SPACER SUPPORT MST-05

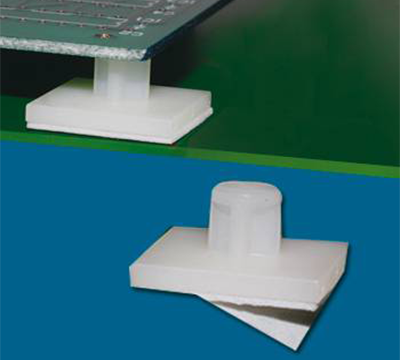

- Joint PCB with Chassis.
- Provides distance,space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
SPACER SUPPORT MST-05
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance,space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M

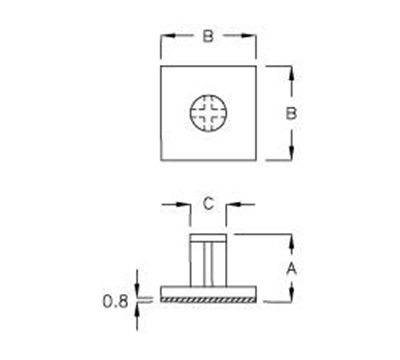

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| MST-05 | 5.0 | 12.0 | Ø6.9 | 500 |
| MST-6C | 6.35 | 12.0 | Ø6.9 | |
| MST-07 | 7.0 | 18.1 | Ø6.9 | |
| MST-9A | 9.4 | 18.1 | Ø6.9 | |
| MST-10C | 10.8 | 18.0 | Ø8.0 | |
| MST-16 | 15.9 | 18.1 | Ø6.9 | |
| MST-16SA | 16.4 | 18.1 | Ø6.9 | |
| MST-19BH | 19.4 | 18.0 | Ø8.0 | |
| MST-20CQ | 20.6 | 18.1 | Ø6.9 | |
| MST-22 | 21.8 | 18.0 | Ø6.9 | |
| MST-37F | 37.0 | 18.1 | Ø6.9 |
