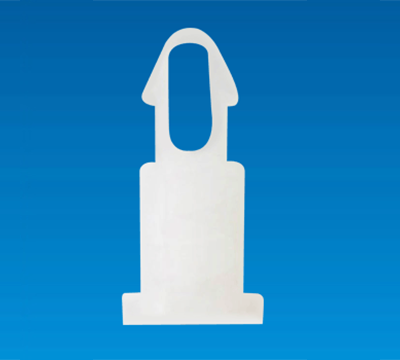

SPACER SUPPORT PCK-1A

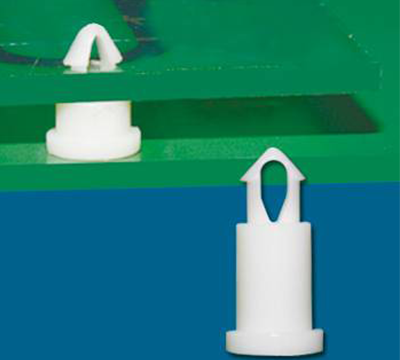

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT PCK-1A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
| PART NO | A | D | T CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| PCK-1TF | 1.5 | Ø4.5 | 0.8~1.0 | 2.0 | 2000 |
| PCK-1A | 1.5 | Ø4.5 | 1.4~1.6 | 2.1 | |
| PCK-2A | 2.5 | Ø4.5 | 1.4~1.6 | 2.1 | |
| PCK-2C | 2.7 | Ø6.0 | 1.4~1.6 | 2.2 | |
| PCK-2D | 2.8 | Ø5.0 | 1.4~1.6 | 2.0 | |
| PCK-2F | 2.8 | Ø5.0 | 1.5~1.7 | 2.0 | |
| PCK-2J | 3.0 | Ø5.0 | 1.4~1.6 | 2.0 | |
| PCK-3A | 3.5 | Ø4.5 | 1.4~1.6 | 2.0 | |
| PCK-04 | 4.0 | Ø4.5 | 1.4~1.6 | 1.9 | |
| PCK-4A | 4.5 | Ø4.5 | 1.4~1.6 | 2.1 | |
| PCK-4F | 4.0 | Ø5.0 | 1.4~1.6 | 2.0 | |
| PCK-5K | 5.0 | Ø3.6 | 1.9~2.1 | 2.0 | |
| PCK-5RH | 5.0 | Ø4.5 | 1.4~1.6 | 1.6 | |
| PCK-06 | 6.0 | Ø4.5 | 1.6~1.8 | 1.5 |
