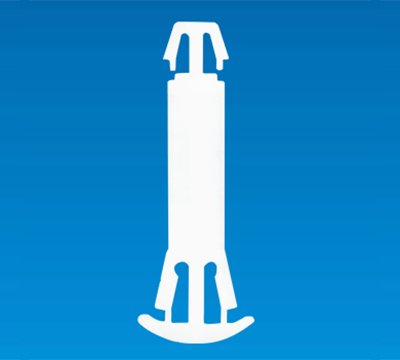

SPACER SUPPORT SCA-19

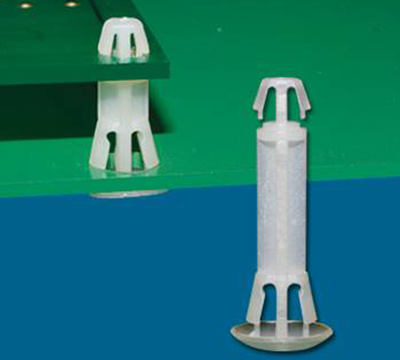

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCA-19
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

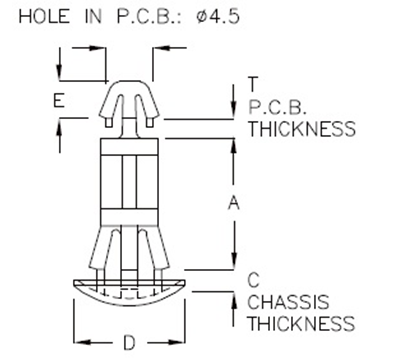

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCA-19 | 19.0 | 1.6 | 0.8 | Ø10.0 | 3.1 | 1000 |
